- Blum’s mini half cranked clip top hinge for back-to-back doors.
- For doors with a narrow style or for smaller sized doors.
- Fits in a 26mm cup drilled in the back of the door.
- Please see the “Reveal & Overlay Information” document below to verify if this bundle will work for your application.

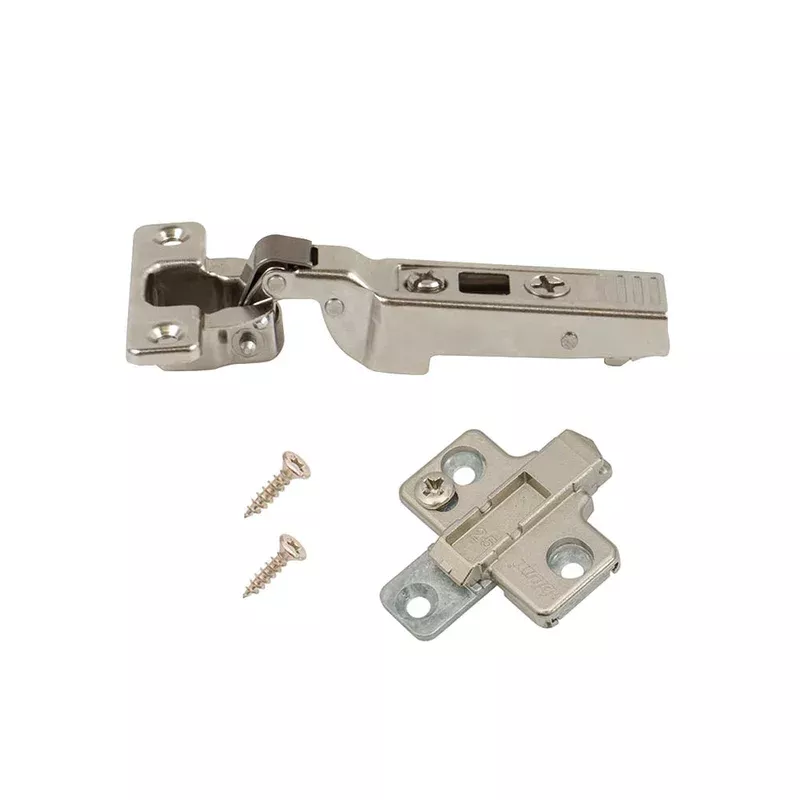

What’s Included
- 1 Blum Mini Half Cranked Hinge
- 1 Blum System Screw 0mm Frameless Mounting Plate
- Two 6 x 5/8″ Flat Head Wood Screws for the hinge
Mounting Screws for Mounting Plate (Not Included)
- Depending on cabinet side wall thickness you will need either of the following screws for the mounting plate:
- For cabinet wall thickness of 5/8″ to 7/8″, you will need to use back to back mounting screws.
- For cabinet wall thickness of 1″ or greater, use 6 x 5/8″ screws.
- Note that only two back to back screws are required for two hinges, whereas you would need four 6 x 5/8″ screws for two hinges.
Optional Accessories – Available for purchase separately:
- Cover Plate for Arm Part of Hinge – Hides the screws on the hinge arm providing a cleaner appearance
- Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
- Blum Touch Latch for Self-Closing Doors (SKU 268822)
- Blum Stand Alone Soft-Close Device (SKU G10006)
