FEATURES
- Normally open relay, 12V, 2×15 Amp relay switch, five pole relay, 2×87 Terminals
- Developed to be durable and robust through accurate processing and the use of ideal-quality materials: allows for up to 100.000 switching cycles
- Temperature resistant design: provides the ability to cope with ambient temperatures reaching from -40 Degree C up to +100 Degree C
- Base plate and housing made from fiber-reinforced polyamide: High corrosion resistance.
DESCRIPTION

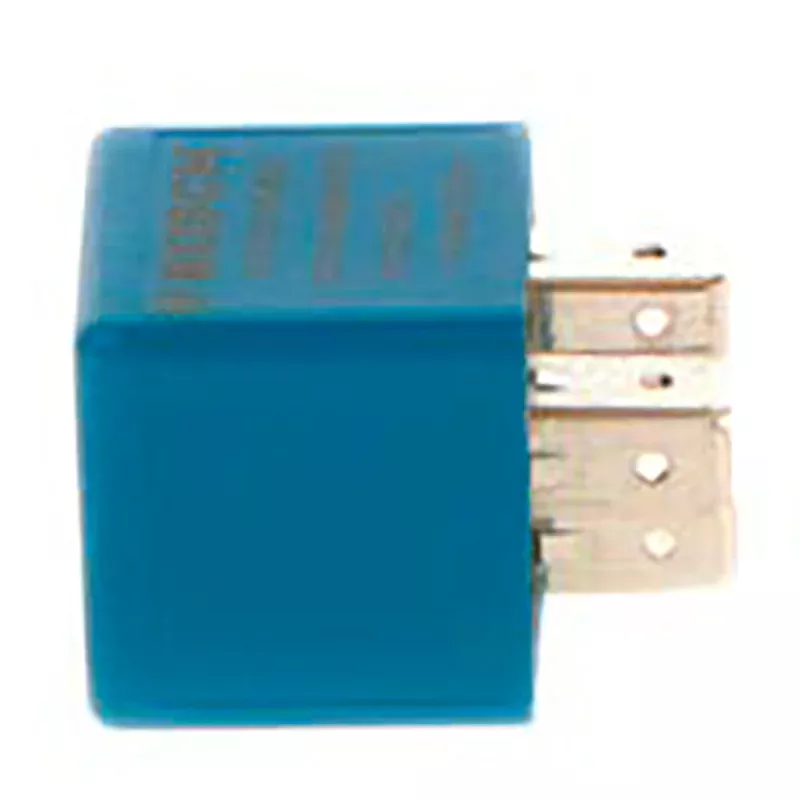

Bosch 0332015006 Normal Open Mini Relay, 5 Pins 12V 2×15 A
SPECIFICATIONS
| Type | Normal Open |
| Mounting Bracket | Plastic |
| Resistor | N/A |
| Diode | N/A |
| Life durability | 100.000 |
| Current | 2 x 15 Amps |
| Voltage | 12 V |
| Number of Pins | 5 |
| Housing | Plastic Housing |
| Temp Range | -40 ~ +100 C |
| Housing Protection | IP54 |
| Connection Protection | IP20 |
OE NUMBER
ALFA ROMEO: 533704, 605361000,
BMW: 1358198, 13581983, 61321358198, UD24561
FERRARI: 110354, 40283905
JOHN DEERE: AZ31123,
MERCEDES: 0015425419, A0015425419
SAAB: 8536401
VOLVO: 1128697, 1324749
