FEATURES
- The 0986332206 Model is the replacement for the 0332209207
- Change Over Mini Relay, 5 Pins, 12V, 20A, Resistor
- Developed to be durable and robust through accurate processing and the use of ideal-quality materials: allows for up to 100.000 switching cycles
- Temperature resistant design: provides the ability to cope with ambient temperatures reaching from -40 Degree C up to +100 Degree C
- Base plate and housing made from fiber-reinforced polyamide: High corrosion resistance.
DESCRIPTION

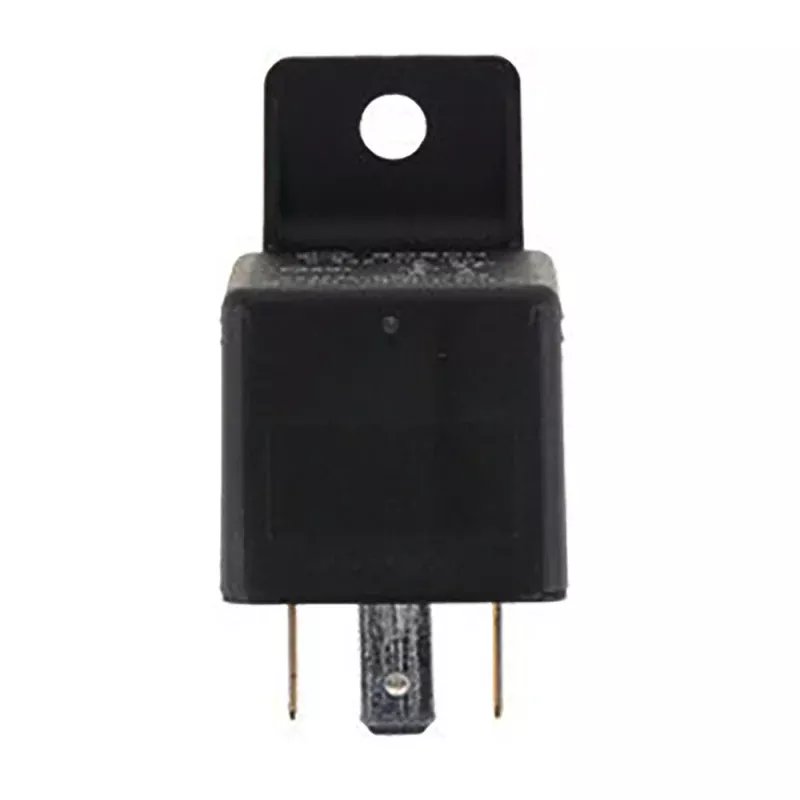

Bosch 0986332206 Change Over Mini Relay, 5 Pins, 12V, 20A, Resistor
SPECIFICATIONS
| Type | Change Over |
| Mounting Bracket | Yes |
| Resistor | Yes |
| Diode | N/A |
| Life durability | 100.000 |
| Current | 20 Amps |
| Voltage | 12V |
| Number of Pins | 5 |
| Housing | Plastic Housing |
| Temp Range | -40 ~ +100 C |
OE NUMBER
HELLA: 4RD007903011, 4RD007903017
