Product Description

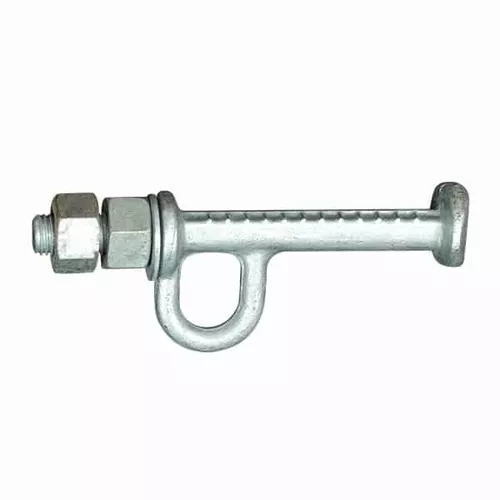

Buckingham 3078Q Step Bolt w/ 7/8″ Anchor Thread – 3078QBuckingham 3078Q Step Bolt w/ 7/8″ Anchor Thread – 3078QBuckingham offers a wide variety of BuckBolts™ and flanges designed to replace/retrofit existing step bolts with a 5,000lb. rated anchor point.Features:7/8″ diameter thread for installation.2 7/16″ overall anchor thread8 ½” overall lengthNew OSHA requirement 1910.24(a) (7) states that “Each step bolt installed on or after January 17, 2017, must be capable of supporting at least four times its maximum intended load.” These BuckBolts™ meet or exceed this requirement.BuckBolts™ are hot-dip galvanized to add a zinc coating that protects against corrosion in the field.Designed with a large head at the end of the BuckBolt™ to prevent foot slippage, which meets or exceeds OSHA standard 1910.24(a)(2).Has a 5″ clear width, which exceeds OSHA standard 1910.24(a)(4).SpecificationsProduct Number:3078QProduct Name:BuckBolt™ W/ 7/8″ Anchor ThreadMaterial:SteelThread Diameter:7/8″Thread Length:2 7/16″Step Width:3/4″Head Width:1 1/2″Anchor Length:2″Anchor Eye Diameter:1 1/4″Clear Width (Footing):5″Coating:Hot Dip GalvanizedTotal Length:8 1/2″Weight Rating:5,000 lbs.Weight:2.57 lbs.Standards:Meets and exceeds OSHA 1910.24 requirements and meets all applicable ANSI standards.Made in the USA?:Yes
