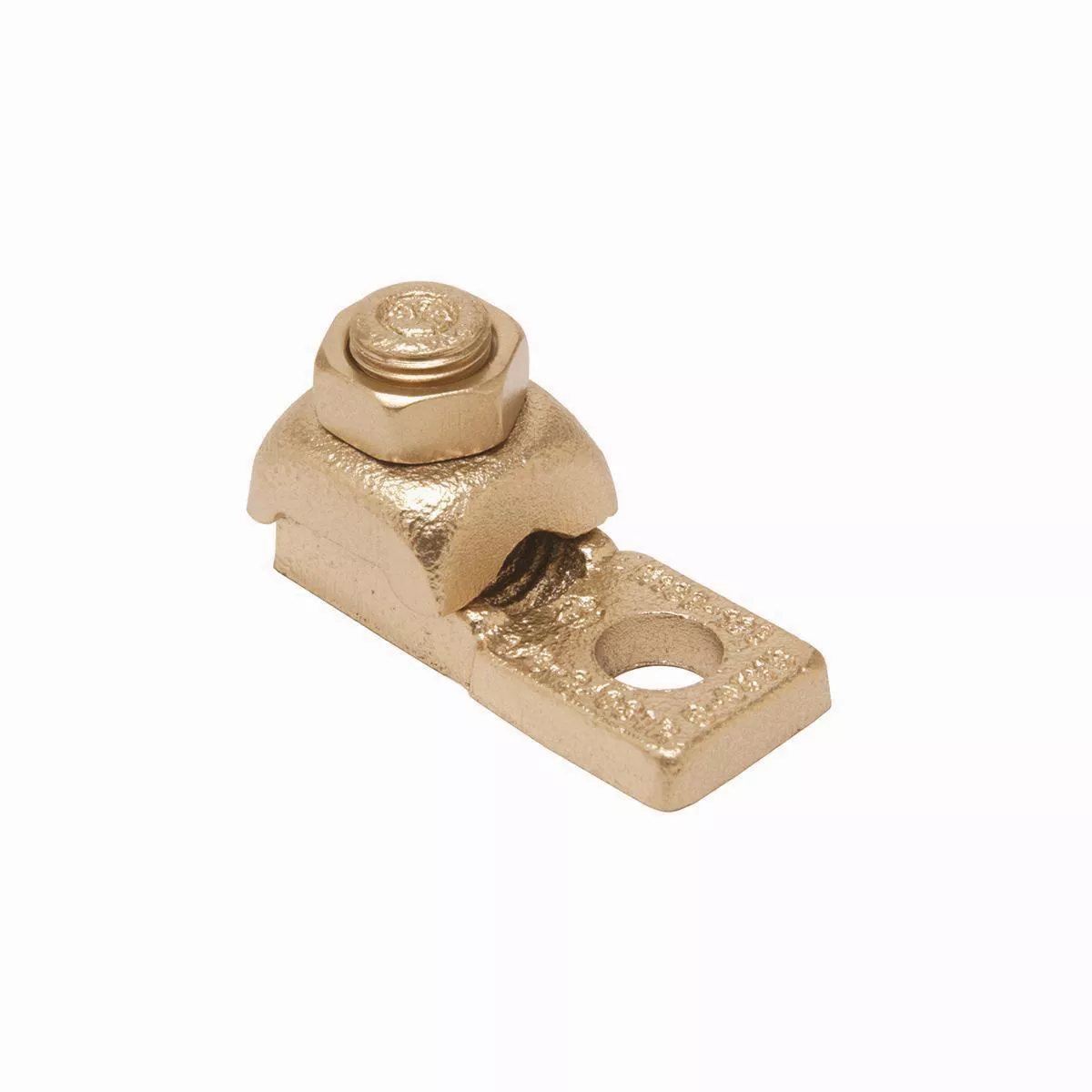

Heavy Duty Copper Lug, 1-Hole, 1/4″ Stud, Single Clamping Element. 4-1 AWG Str, Copper
QIKLUG™ Terminals feature compact size, high copper alloy terminal for joining cables to equipment pads or bars
Each element accommodates a wide range of cable
One-wrench installation
Specifications
Brand Name
Burndy
Sub Brand
Qiklug™
Item Name
Mechanical Lug
Type
K2A-U, Universal, Dual-Rated
Conductor Type
Copper
Conductor Size
4-1 AWG
Number of Bolt Holes
1
Material
Copper
Tongue Size
5/8 in W
Specifications
150 in-lb Installation Torque
Mounting Hole Size
0.28 in
Temperature Rating
194 °C
Finish
Unplated
Dimensions
1-3/4 in L
Standards
UL 486A, UL 486B Listed
Application
For Joining a Wide Range of Cable to Equipment Pads or Bar
UPC
781810312285
