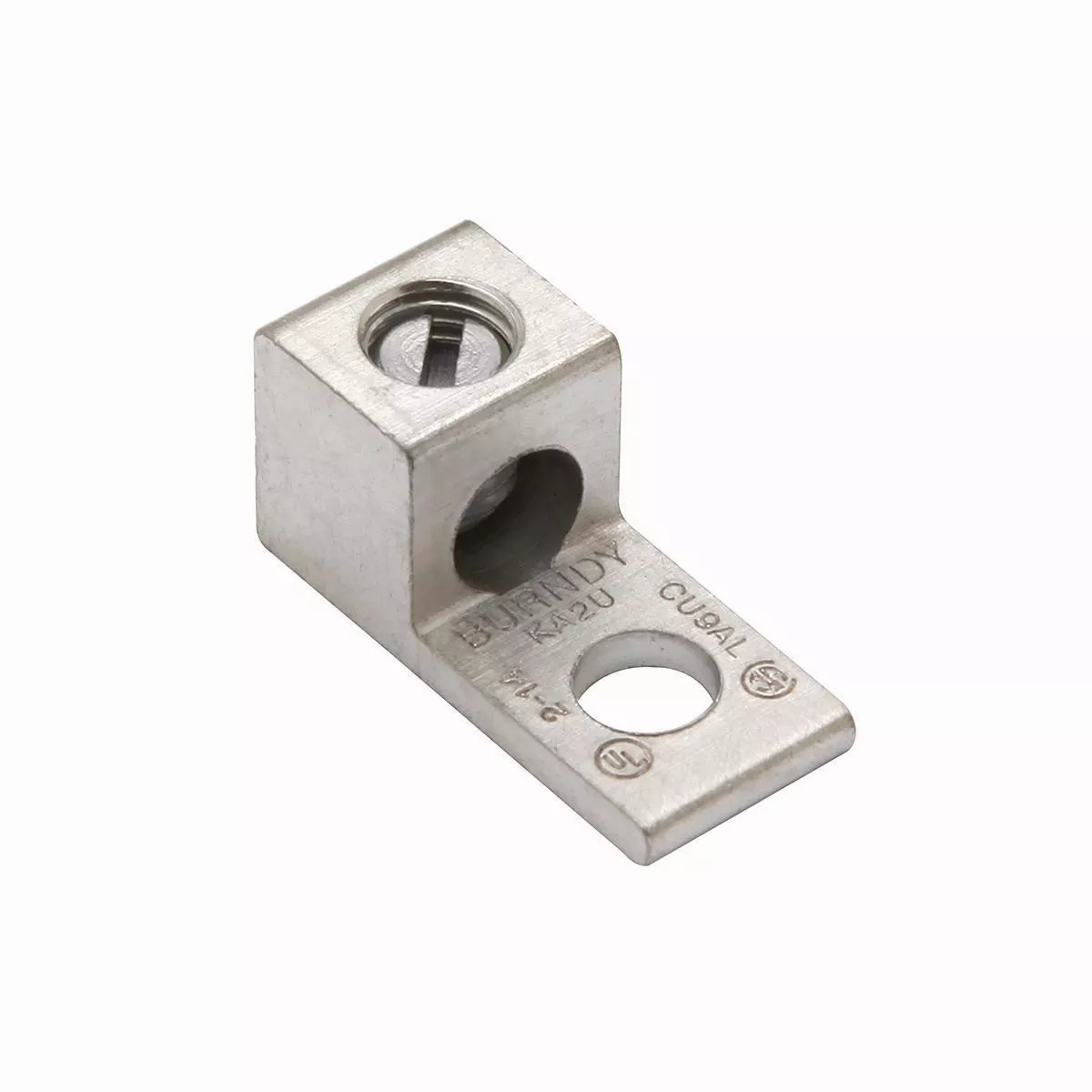

Aluminum Universal Terminal, 1 Hole, 14-2 AWG (Str), 1/4″ Stud, 1 Screw, Al/Cu Rated, Tin Plated.
Dual Rated Panelboard Lugs
High strength extruded aluminum alloy
Electro tin-plated for low contact resistance
Rated to 35kV
Specifications
Brand Name
Burndy
Sub Brand
Burndy
Item Name
Mechanical Lug
Type
KA-U, Universal, Dual-Rated
Conductor Type
Aluminum and Copper
Conductor Size
14-2 AWG Stranded
Material
High Strength Aluminum Alloy
Number of Conductors
1
Bolt Size
1/4 in
Tongue Size
0.63 in L x 0.1 in T
Temperature Rating
194
Finish
Electro-Tin Plated
Dimensions
1.16 in L x 1/2 in W x 0.55 in H
Standards
UL Listed, CSA Certified, RoHS Compliant, AL9CU Rated
Application
For Aluminum And Copper Conductors
UPC
781810370056
