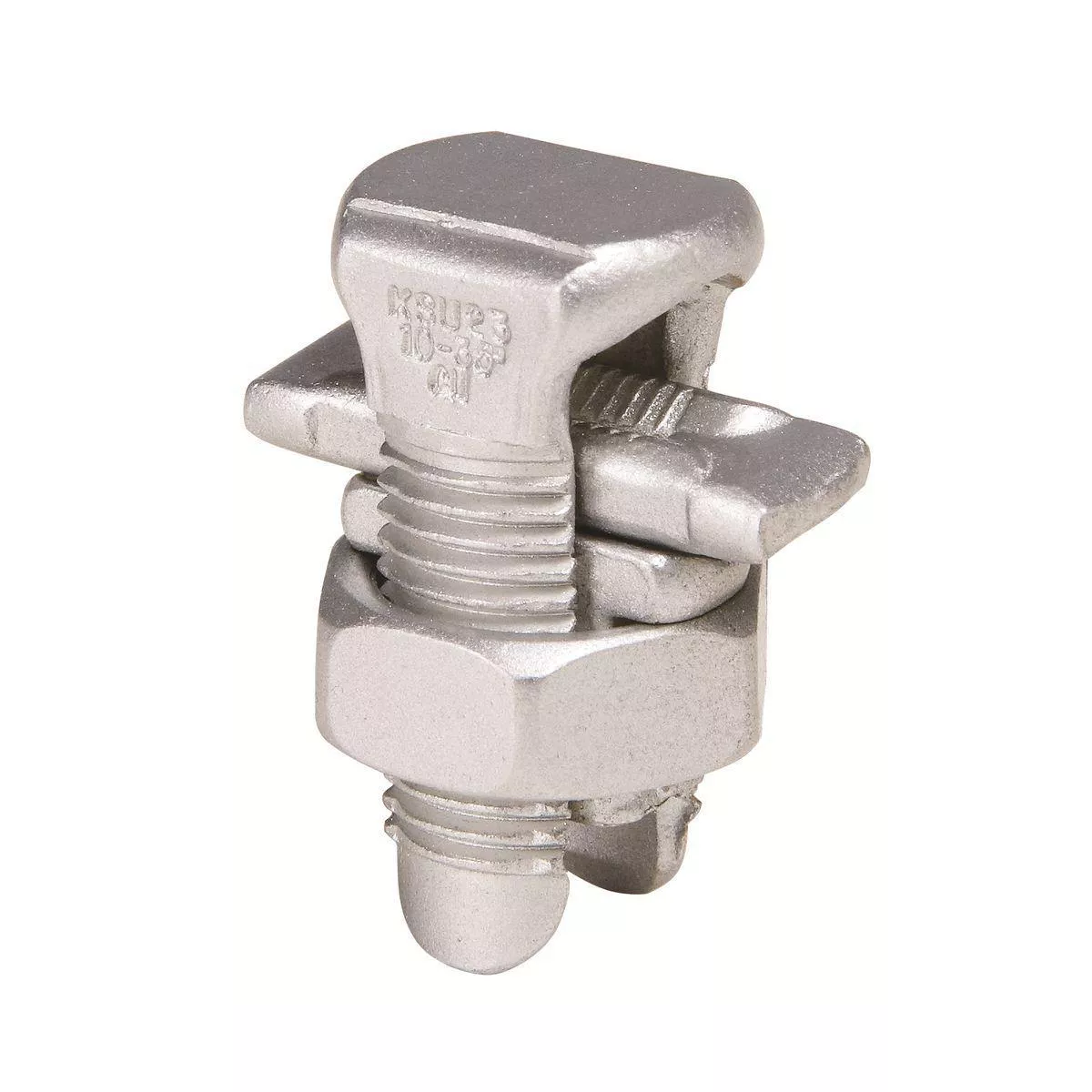

Tin-plated, high strength copper alloy SERVIT with spacer. Spacer separates dissimilar conductors and provides long contact length that prevents high pressure point contacts between run and tap conductors, 1.48 IN L.
Tin-plated, high strength copper alloy with spacer
Spacer separates dissimilar conductors and provides long contact length preventing high pressure point contacts between run and tap conductors
Specifications
Brand Name
Burndy
Sub Brand
Universal Servit®
Item Name
Split Bolt with Spacer
Type
KSU, Universal
Main Conductor Size
2-8 AWG Solid
Nut Size
0.81 in
Material
High Conductivity Copper Alloy
Tap Conductor Size
8 AWG Solid
Conductor Type
ACSR, 5005, AAAC, Stranded Aluminum, Stranded and Solid Copper (Run and Tap), Steel (Nominal Diameter) (Tap)
Finish
Tin Plated, Galvanic/Electrolytic Zinc Plated
Tightening Torque
275 in-lb
Dimensions
1.48 in L x 0.59 in W
Standards
UL 486A, CSA Certified, RoHS Compliant
Application
For All Combinations of Copper, Aluminum, ACSR, AAAC, 5005, and Steel
UPC
781810036006
