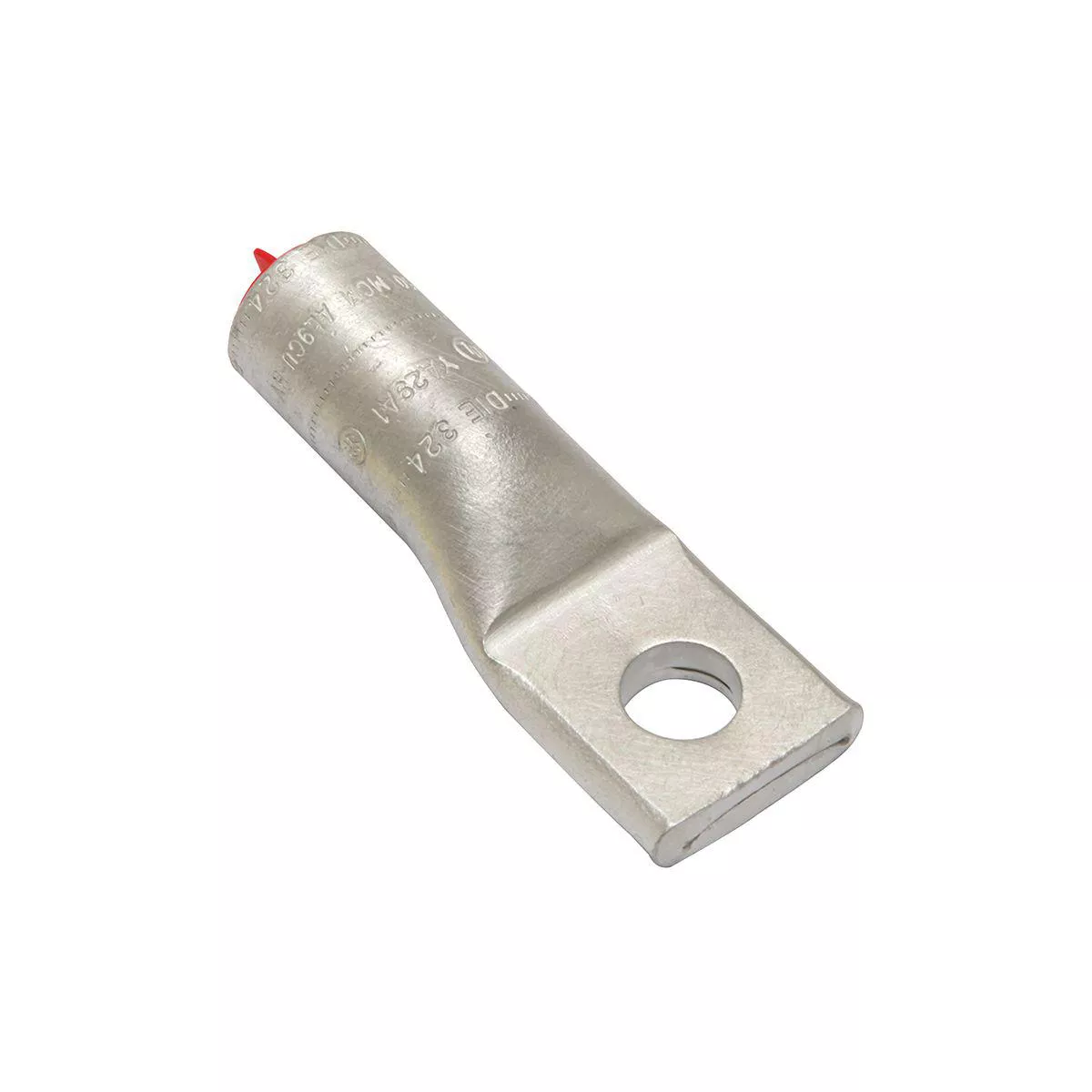

Aluminum Compression Lug, 1 Hole w/o Inspection Window, 250 kcmil, 1/2″ Stud, Short Barrel, Tin Plated.
UL486A-486B Listed and CSA Certified
Aluminum terminals are dual rated to accommodate both copper and aluminum wire and are indicated with AL-CU on the connector – AL9CU is UL Listed 90°C, up to 35kV, AL7CU is UL Listed 75°C, up to 35kV
Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damage of the wire strands during insertion
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Connectors are clearly marked with wire size, die index, color code, and crimp location bands
Factory pre-filled with PENETROX Type A13 oxide inhibitor
Color coded end caps are factory inserted in the barrels to match the die color code and prevent foreign materials from entering the barrel
Aluminum oxidation is not easily detected but causes resistance in a connection, it is imperative the proper preparation takes place prior to making an aluminum-to-aluminum connection
N/A
Specifications
Brand Name
Burndy
Sub Brand
Hylug™
Item Name
Compression Lug
Type
Dual-Rated, Short Sleeve, Round/Sector Shaped
Conductor Size
250 kcmil
Number of Holes
1
Stud Size
1/2 in
Overall Length
3.53 in
Color Code
Red
Material
Aluminum
Series/Model
YA-A
Voltage Rating
35000 V
Barrel Type
Internally Bevelled
Finish
Electro Tin Plated
Temperature Rating
90 °C
For Use With
Aluminum and Copper Conductors
Standards
UL 486A-486B Listed
Application
For Aluminum And Copper Conductors
UPC
781810755105
