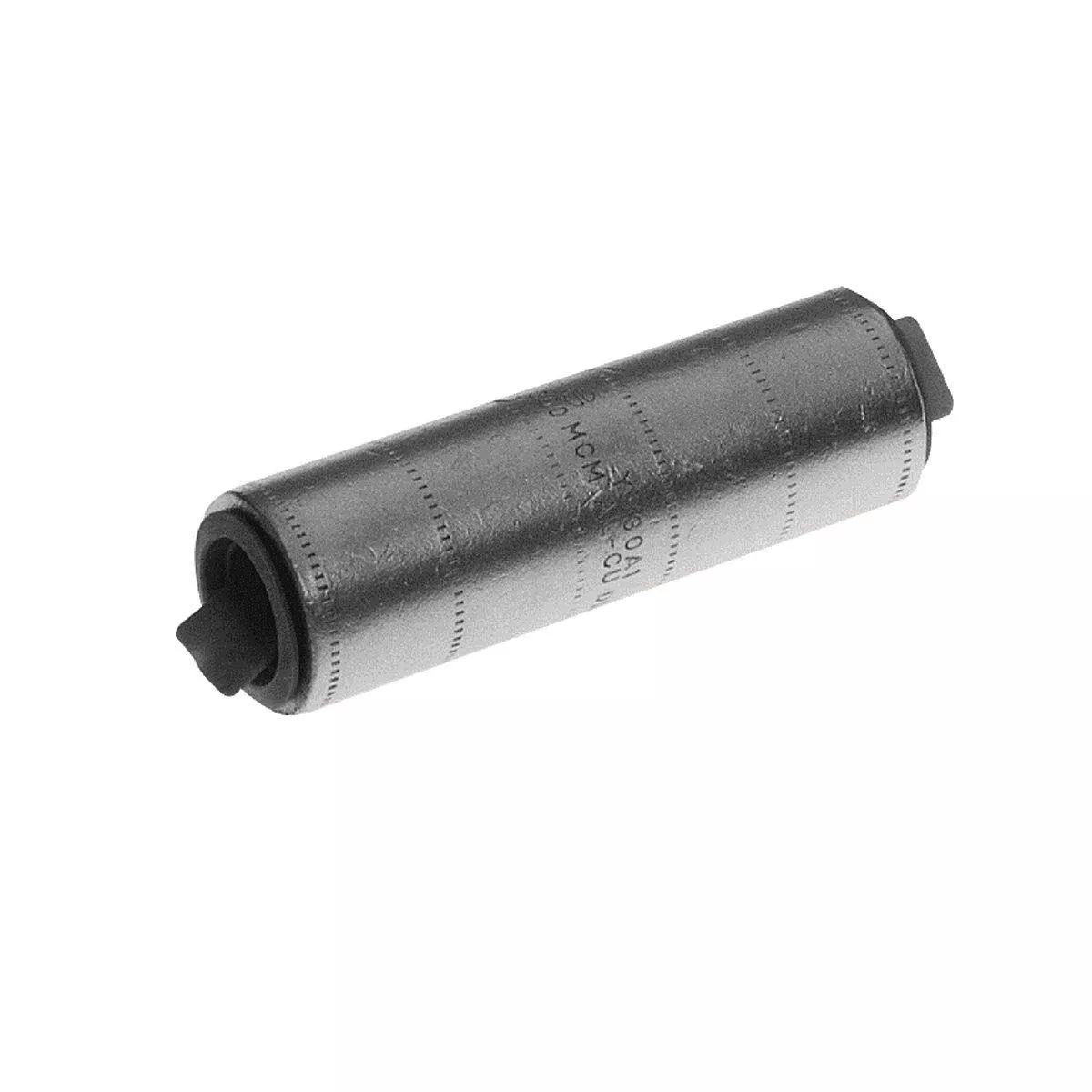

Aluminum Compression Splice, 1 AWG, 2.05″ Splice Length, Long Barrel, Belled End, Tin Plated.
Aluminum splices are dual rated to accommodate both copper and aluminum wire
Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Clearly marked with wire size, die index, color code, and crimp location bands
Factory pre-filled with PENETROX™ Type A13 oxide inhibitor
Color coded end caps inserted in the barrels to match the die color code and prevent foreign materials from entering the barrel
Specifications
Brand Name
Burndy
Sub Brand
Hylink™
Item Name
Non Insulated Butt Splice Connector
Size
0.9 in
Voltage Rating
600 V – 35 kV
Conductor Size
1 AWG Stranded
Overall Length
2-1/2 in
Type
YS-A, Standard Barrel
Series/Model
YS-A Series
Barrel Type
Standard
Contact Material
High-Conductivity Wrought Aluminum
Connection Type
Splice
Color
Black
Finish
Electro-Tin Plated
Temperature Rating
90 °C
For Use With
All Combinations of Aluminum to Aluminum, Aluminum to Copper, and Copper to Copper Conductor Combinations
Standards
UL Listed, CSA Certified, RoHS Compliant
Application
For Use On All Combinations Of Aluminum To Aluminum, Aluminum To Copper, And Copper To Copper Conductor Combinations
UPC
781810756508
