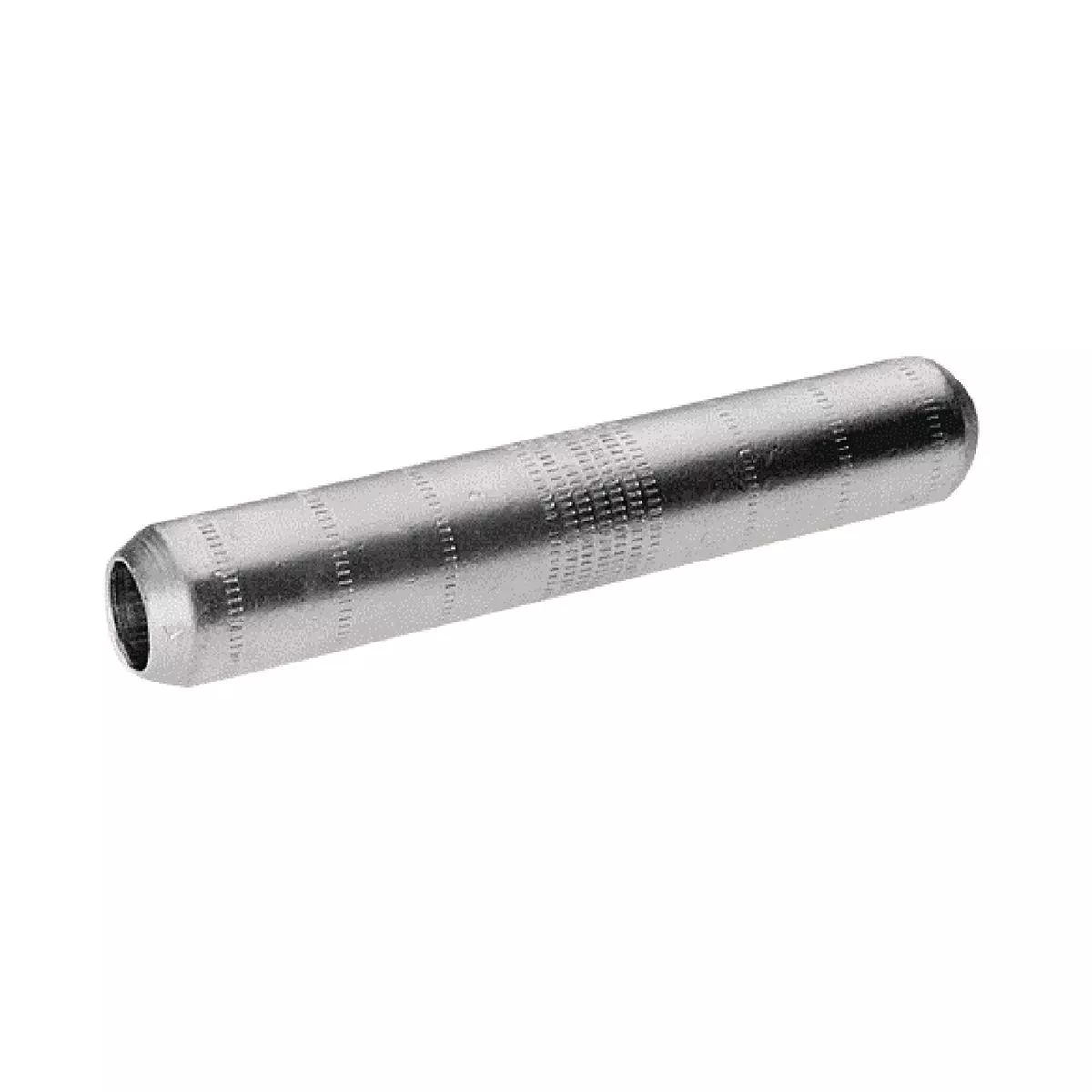

Uninsulated high voltage Cu -code compression splice, Tapered end, 500 kcmil, 600V-35KV, Tin plated, 20 Index.
Copper seamless barrel designed with tapered ends per EEI Standard TD160, for use on voltages 5kV through 35kV, this aids in preventing corona emission and simplifies taping for lower installation cost
Barrel also features internal chamfer at wire entry to ensure smooth insertion of wire, preventing possible damage of the wire strands during insertion
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Specifications
Brand Name
Burndy
Sub Brand
Hylink™
Item Name
Compression Splice Connector
Size
3.86 IN Length X 1.68 IN Dimension B
Voltage Rating
600 – 35000 V
Conductor Size
500 kcmil
Overall Length
3.86 in
Type
High Voltage
Series/Model
YSP-T
Barrel Type
Long
Strip Length
1.68 in
Contact Material
Copper
Connection Type
End
Color
Black
Finish
Tin Plated
Temperature Rating
90 °C
Standards
UL Listed, CSA Certified, RoHS Compliant
Application
For Higher Voltage Applications From 5 kV Through 35 kV and Commercial Stranded Copper Conductors
UPC
781810001332
