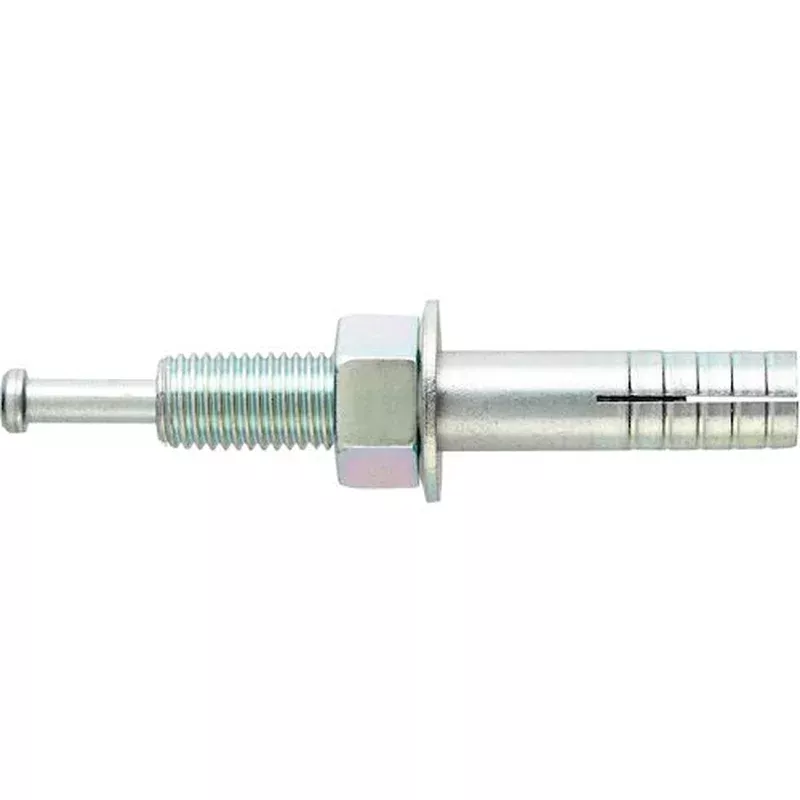

Features Easy construction by simply driving the core rod in, so you can see the completion of the work at a glance Can be installed from above the attachment The main body diameter and the nominal diameter of the screw are the same
Use Installing machines, fixing electric wire conduits, attaching signboards and billboards Installing heating, air conditioning, and air conditioning Installing ladders Installing lighting equipment Installing fences and handrails
Specification Thread designation: M6Overall length (mm): 45Thread length (mm): 15Maximum attachment thickness (mm): 6Prepared hole diameter (mm): 6.4Maximum tensile load (kN): 4.2Embedding depth (mm): 30
Specification2
Material/Finish Steel Surface treatment: Trivalent chromate
Set contents/accessories
caution
