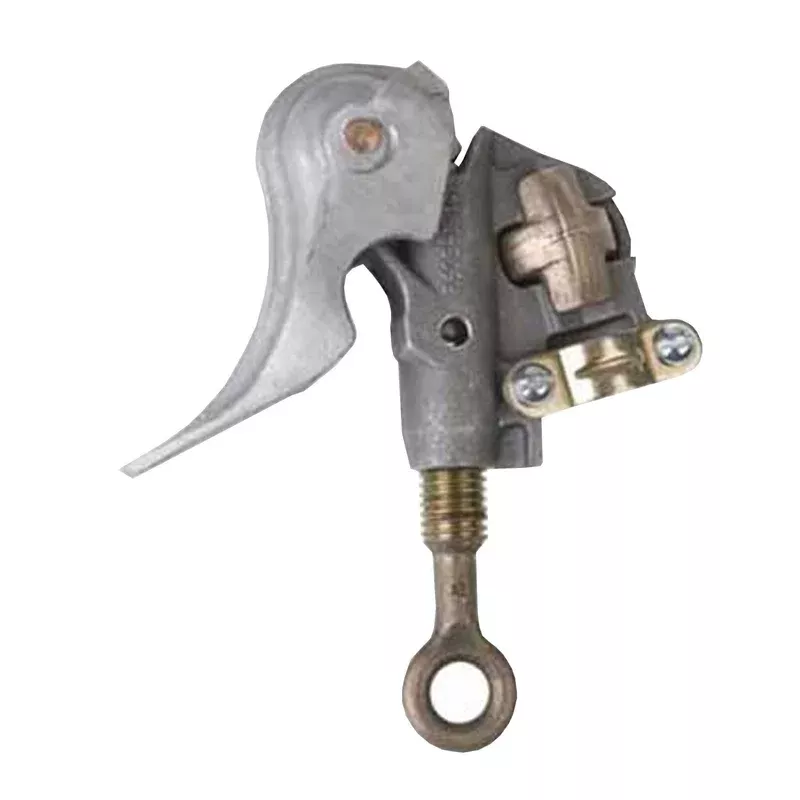

Aluminum body, Smooth jaws
Bronze eyescrew with fine threads
Bronze pressure-type terminal
Electrical Ratings:
Continuous Current (AMPS): 400
Fault Current 15 Cycles (AMPS): 43,000
Fault Current 30 Cycles (AMPS): 30,000
Mechanical Ratings:
Recommended Torque (in. – lb.): 250
Main Line Range – Max.: 566 kcmil Cu. 900 kcmil ACSR (1.162″)
Main Line Range – Min.: 6 Sol. Cu. (0.162″)
Jumper Range – Max.: 4/0 Ground Cable with Plain Plug
Jumper Range – Min.: 2 Ground Cable with Plain Plug
ASTM Designation: Type I Class A Grade 5
**LEAD TIME FOR THIS ITEM IS 2-3 WEEKS**
SKU: G3622-1
