Product Description

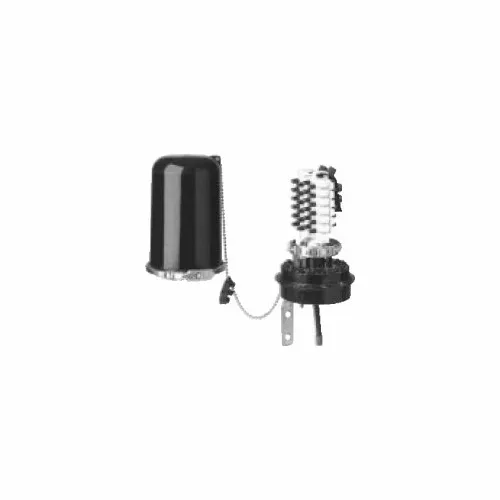

CHANNELL BMT-60916000787 6 PAIR BRACKET MOUNT WIRE TERMINAL NEWBRACKET MOUNTED TERMINAL (BMT™) SERIESTELECOM CLOSURE PRODUCTSBMT 609Dimensions: 6″ (152.4mm) diameter9″ (228.6mm) length of straight wallShipping: 1 per carton, 30 per palletWeight: 12 lbs (5.5 kg) cartonBMT 612Dimensions: 6″ (152.4mm) diameter12″ (304.8mm) length of straight wallShipping: 1 per carton, 30 per palletWeight: 14 lbs (6.4 kg) cartonBMT 620Dimensions: 6″ (152.4mm) diameter20″ (508mm) length of straight wallShipping: 1 per carton, 30 per palletWeight: 17 lbs (7.7 kg) cartonBMT 624Dimensions: 6″ (152.4mm) diameter24″ (609.6mm) length of straight wallShipping: 1 per carton, 30 per palletWeight: 32 lbs (14.6 kg) cartonFor buried, underground, marina and aerial applications. Airtight and watertight. Re-enterable enclosure. Neoprene sealing grommets and O-rings effectively seal housing and cables. High impact, UV resistant thermoplastic material is resistant to corrosive environments. Lockable sealing clamp. Non-conductive wire runs in block for good housekeeping. Available with filled cable for buried applications, or aircore cable for underground applications. Available with pre-installed service wires in 3-pair, 5-pair, or 6-pair configurations. Removable service wire plugs facilitate up to 16 service wires. Wire gauge provided to determine O.D. of service wire. Grommet cards ordered separately for applicable service wire diameters (refer to page ??).Lockable Sealing Clamp with216B HandleService Wire Gauge Grommet Carddiameter6″ length9″ terminal pairsterminal block typecable typeservice wire grommet sealing range (outside wire diameter)
