Product Description

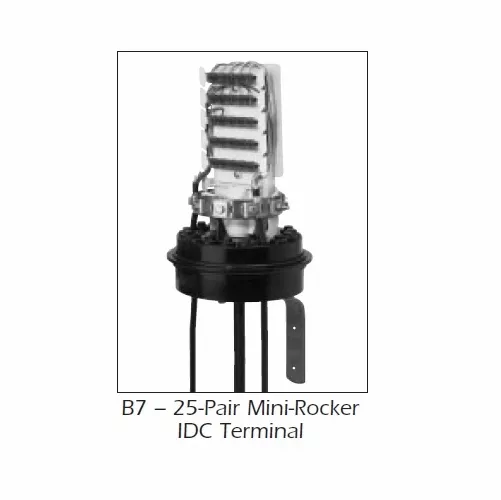

CHANNELL BMT-60925B7A1G56 25 PAIR BRACKET MOUNT WIRE TERMINAL NEWCHANNELL BMT-60925B7A1G56 25 PAIR BRACKET MOUNT WIRE TERMINAL NEWBRACKET MOUNTED TERMINAL (BMT™) SERIESFor buried, underground, marina and aerial applications.SPECIFICATIONSBMT 609Dimensions: 6″ (152.4mm) diameter9″ (228.6mm) length of straight wallShipping: 1 per carton, 30 per palletWeight: 12 lbs (5.5 kg) carton• Airtight and watertight.• Re-enterable enclosure.• Neoprene sealing grommets and O-rings effectivelyseal housing and cables.• High impact, UV resistant thermoplastic materialis resistant to corrosive environments.• Lockable sealing clamp.• Non-conductive wire runs in block for goodhousekeeping.• Available with filled cable for buried applications,or aircore cable for underground applications.• Available with pre-installed service wires in 3-pair,5-pair, or 6-pair configurations.• Removable service wire plugs facilitate up to16 service wires.• Wire gauge provided to determine O.D. of servicewire. Grommet cards ordered separately forapplicable service wire diameters.
