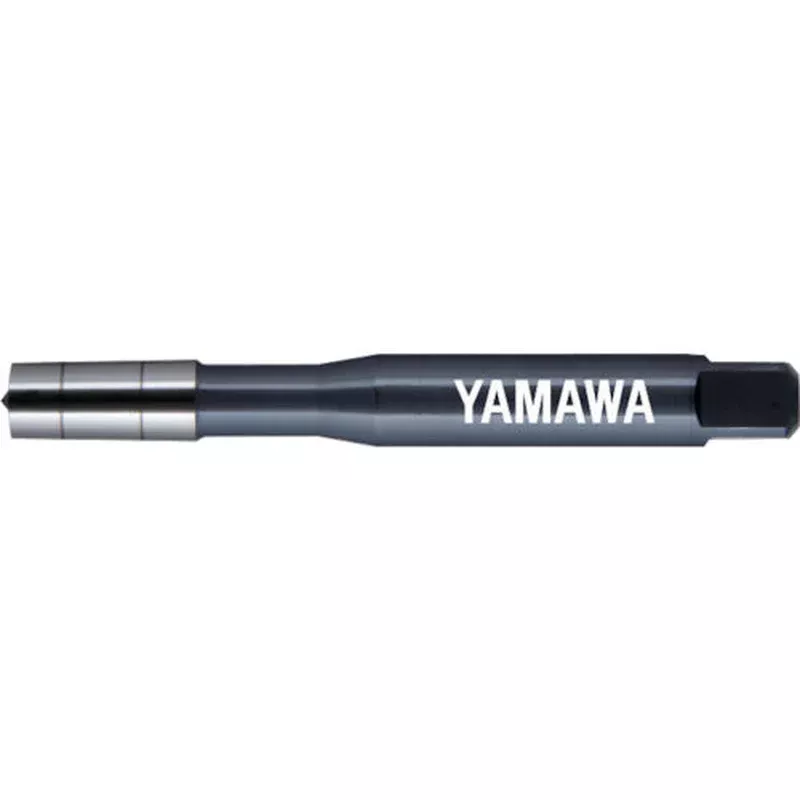

Features This is a pilot hole check pin (taper type) for cutting taps that allows you to easily check the diameter of the pilot hole with just one piece. Uses high-speed tool steel with wear resistance in mind. Can be used in either a through hole or a blind hole with plenty of room.
Use
Specification Nominal size: M2.5Pitch (mm): 0.45Thread length (mm): 8Overall length (mm): 46Shank diameter (mm): 3Shank square part (mm): 2.5Processed screw : Metric thread Surface treatment: Non-coating
Specification2 For cutting taps For metric threads Taper type
Material/Finish High speed tool steel (HSS)
Set contents/accessories
caution
