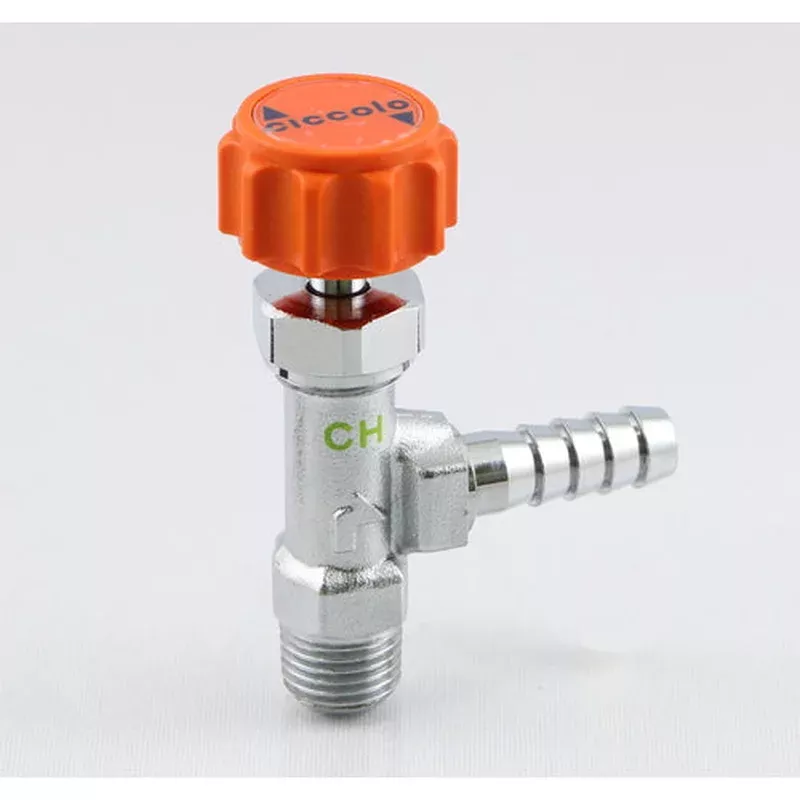

Features Compact shape with integrated needle valve and fitting. The unique color sense and design enhance the functionality and aesthetics of the device.
Use For water, air, and oil at 0.98MPa (80 to -10 ) (excluding frozen areas).
Specification Height (mm): 44Connection diameter D: R3/8Tube outer diameter D2 (mm): 9.0Depth (mm): -10 to 80 (excluding frozen areas)Turn radius (mm): Water, air, oil (fluid that does not have a negative effect on the material) Fluid used: water, air, oil (fluid that does not have a negative effect on the material)
Specification2 Operating temperature range: -10 to 80 (excluding frozen areas) Using pressure: 0.98MPa
Material/Finish Body: Brass (C3771, C3604) + chrome plating O-ring: Nitrile rubber (NBR)
Set contents/accessories
caution Please flow the fluid in the direction of the arrow on the main body.
