Product Description

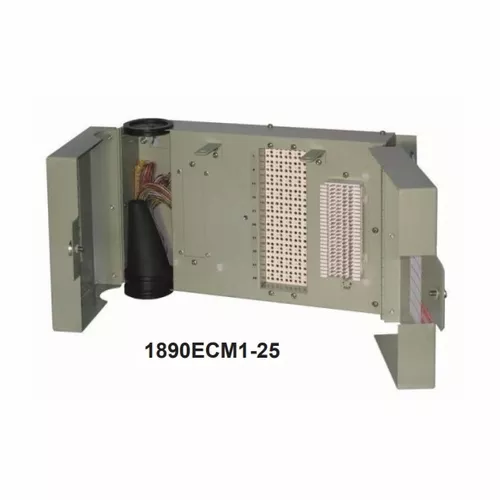

CIRCA 1890ECM1-25 25PR MS2-IN/66-OUT BUILDING TERMINAL NEWCIRCA TELECOM1890ECM1-25 25PR MS2-IN/66-OUT BUILDING TERMINAL NEW1890ECM1-25Model 1890ECM1-25Stock Code108006Pair Count25InputMS2Output66Dimensions (H x W x D)7.50 x 11.50 x 5.25 inchesWeight 8 lbs.1890ECM1-25 25 PAIR – INDOOR BET – MS2/66 – COVER & SPLICE CHAMBERThese 16 AWG steel building entrance terminals feature an easy to install MS2 style connector for use in specialized OSP installations including ONU and FTTx and military command and control centers. Also included are multiple external and internal ground lugs as well as a splice chamber. UL Approval standard on all terminals. Standard 5-pin protector modules, available in gas tube and solid state versions, are sold separately.Features & Benefits· 16 AWG Powder Coated Steel Construction· Equipped with an Internal 26 AWG Fuse Link· External Ground Connectors Accept 6 – 14 AWG Wire· Industry Standard 5 Pin Design· Exceeds UL497 Primary Protection Standards· Stackable with Connection Grommets Included· MS2 Input Accepts 22 – 28 AWG Wire/66 OutputAccepts 22- 26 AWG Wire
