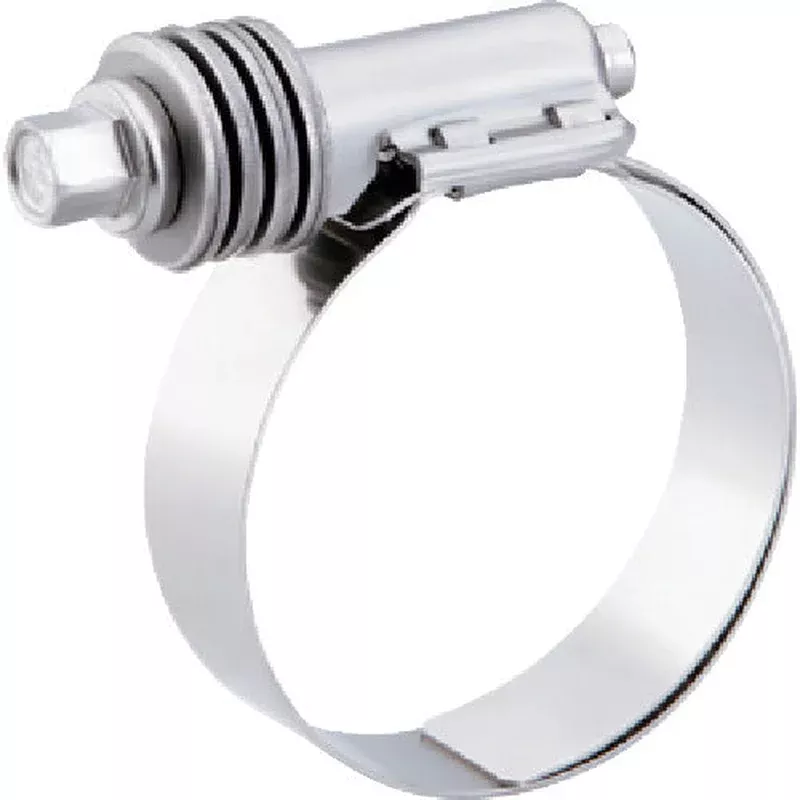

Features Belleville spring mechanism allows the diameter of the hose to expand or narrow automatically as the hose expands or contracts due to temperature changes. The longer inner liner protects the hose from damage and helps maintain constant sealing pressure. Since it is made entirely of stainless steel, it can be recommended even in harsh environments in terms of hygiene.
Use For securing hoses that require strict management.
Specification Maximum diameter (mm): 27Minimum diameter (mm): 14Band width (mm): 14.33Thickness (mm): 0.584Tightening torque (N m): 5.1Hex bolt (mm) :7.9
Specification2
Material/Finish Screw: Stainless steel (SUS410) Band/housing/washer: Stainless steel (SUS301)
Set contents/accessories
caution
