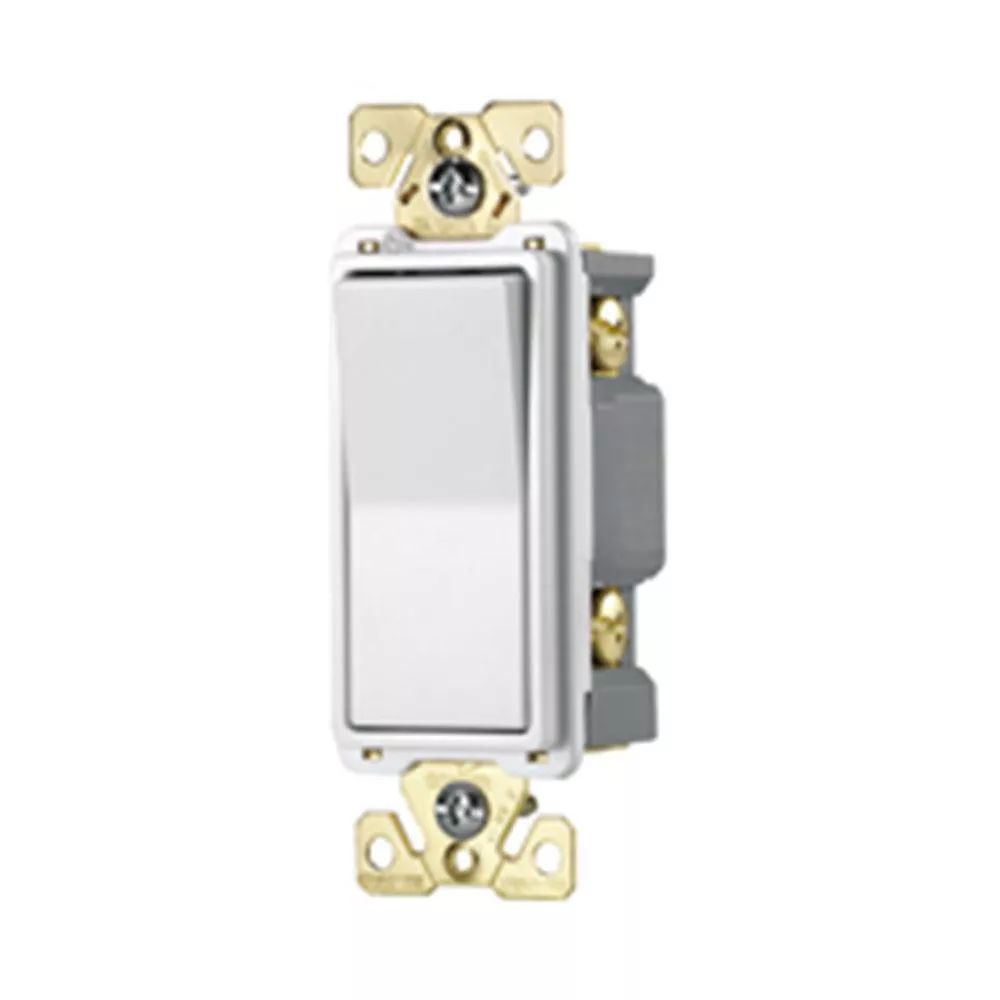

Commercial Grade – AC Decorator Switches – Back and Side Wire. Arrow Hart’s Specification Grade Decorator Switches are designed to provide superior quality, reliability and performance in a variety of commercial environments.
Specifications
| Brand Name | Cooper Industries | Item Name | Decorator Switch |
| Type | 3-Way | Grade | Commercial |
| Voltage Rating | 347 VAC | Amperage Rating | 20 A |
| Series/Model | 7600 | Terminal Connection | Screw |
| Conductor Size | 14-10 AWG | Wiring Type | Back/Side Wired |
| Operating Cycles | 30000 | Contact Material | Silver Alloy |
| Material | Polycarbonate | Color | White |
| Finish | Brass Plated | Dimensions | 13 in W x 4.19 in H |
| Temperature Rating | -20 to 60 °C | Standards | cULus Listed, UL 20 Listed, CSA C22.2, No 111 E18704 Certified, Federal Specification WC-896E, UL 94-V2 Flammability Rating, RoHS Directive 2011/65/EU |
| UPC | 032664719639 |
