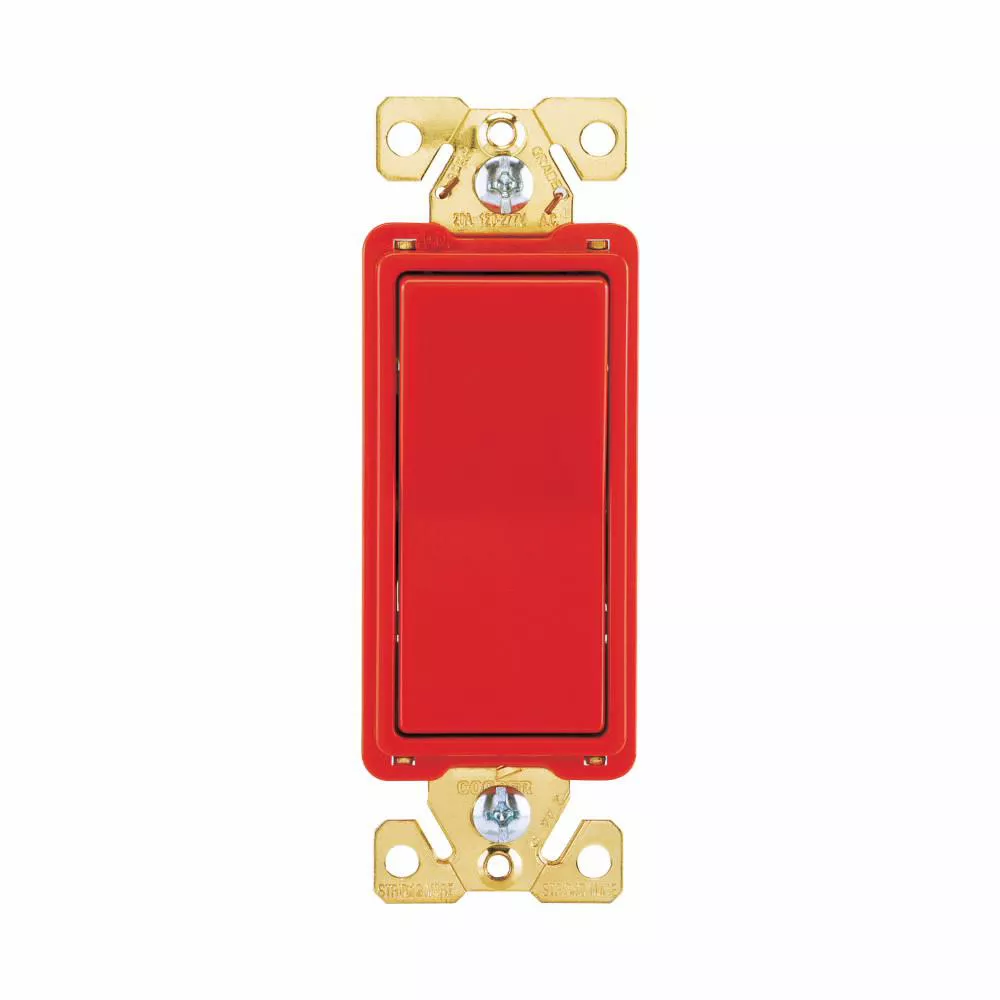

Commercial Grade – AC Decorator Switches – Back and Side Wire. Arrow Hart’s Specification Grade Decorator Switches are designed to provide superior quality, reliability and performance in a variety of commercial environments.
Specifications
| Brand Name | Eaton | Sub Brand | Arrow Hart |
| Item Name | Decorator Switch | Type | 3-Way |
| Grade | Commercial, Specification | Voltage Rating | 120 – 277 VAC |
| Amperage Rating | 20 A | Phase | 1 |
| Action | Maintained | Actuator | Antimicrobial Paddle |
| Series/Model | 7623 | Load Type | CFL, ELV, Fan, Fluorescent, Halogen, Incandescent, LED, MLV, Motor Control |
| Terminal Connection | Screw | Conductor Size | 14-10 AWG |
| Wiring Type | Back and Side Wired, Push Wired | Operating Cycles | 30000 |
| Contact Material | Silver Alloy | Material | Polycarbonate/PVC |
| Color | Red | Dimensions | 1.29 in W x 1.18 in D x 4.19 in H |
| Mounting Type | Flush | Temperature Rating | -20 to 60 °C |
| Standards | cULus Listed to UL 20 and CSA C22.2 No. 111 in File Number E18704, Federal Specification WC-896E, RoHS Compliant, UL 94-V2 Flammability Rating | UPC | 032664647376 |
