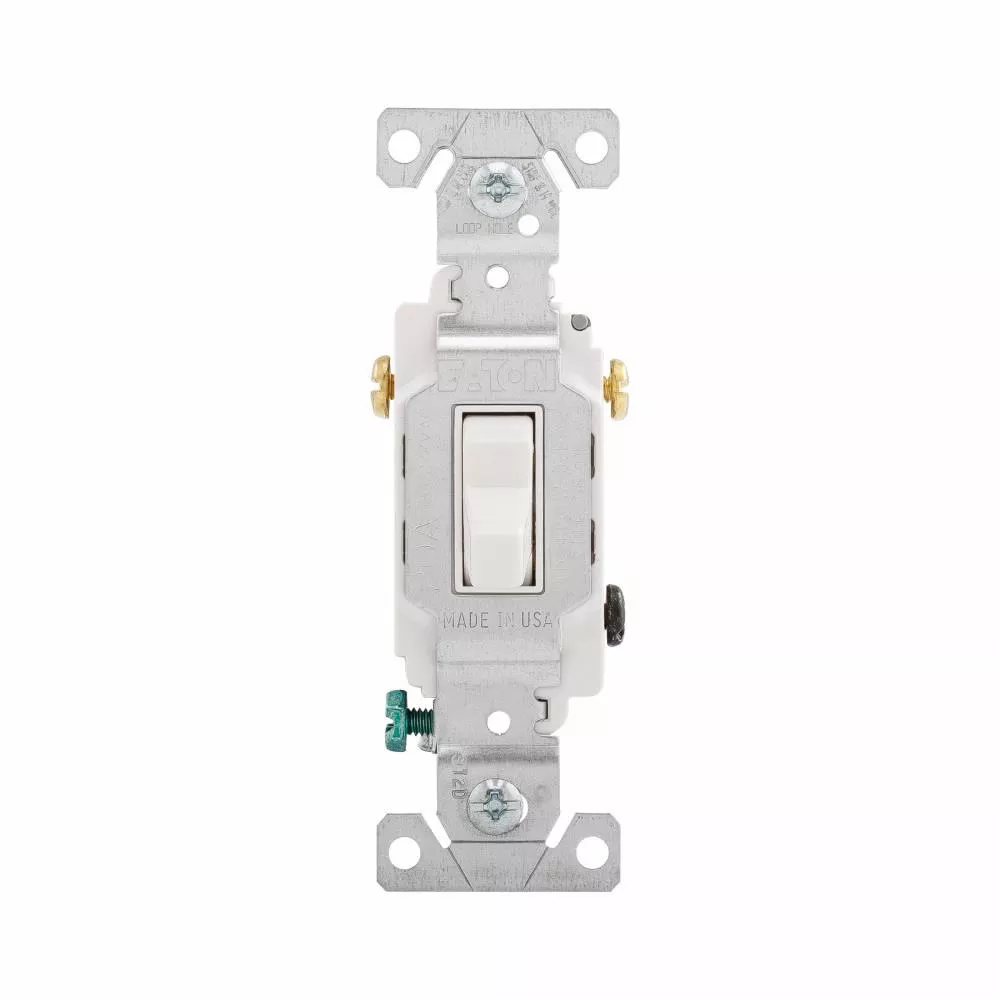

Commercial Grade – AC Quiet Switches – Side Wire. Heavy duty cam action mechanism insures quiet switch action. Side wire terminals accept up to 10 solid or stranded wire. Ground screw terminal standard. 120/277V/AC rating ideal for fluorescent lighting fixtures typical in commercial applications.
Specifications
| Brand Name | Cooper Industries | Item Name | Toggle Switch |
| Type | 3-Way | Voltage Rating | 120 – 277 VAC |
| Amperage Rating | 20 A | Maximum Load Capacity | 5.54 kW |
| Number of Poles | 1 | Actuator | Toggle |
| Contact Configuration | Switches | Color | White |
| HP Rating | 0.5 hp | Grade | Commercial |
| Action | Positive Snap | Wiring Configuration | Side Wire |
| Terminal Connection | Screw | Conductor Size | 14-10 AWG |
| Operating Cycles | 50000 | Material | PVC |
| Dimensions | 1.3 in W x 4.2 in H | Mounting | Screw Mount |
| Standards | cULus Listed, UL 20, E18704 Listed, Federal Specification WC-896G, NOM Certified | Application | For High Quality in Low-Abuse Commercial Areas |
| UPC | 032664488634 |
