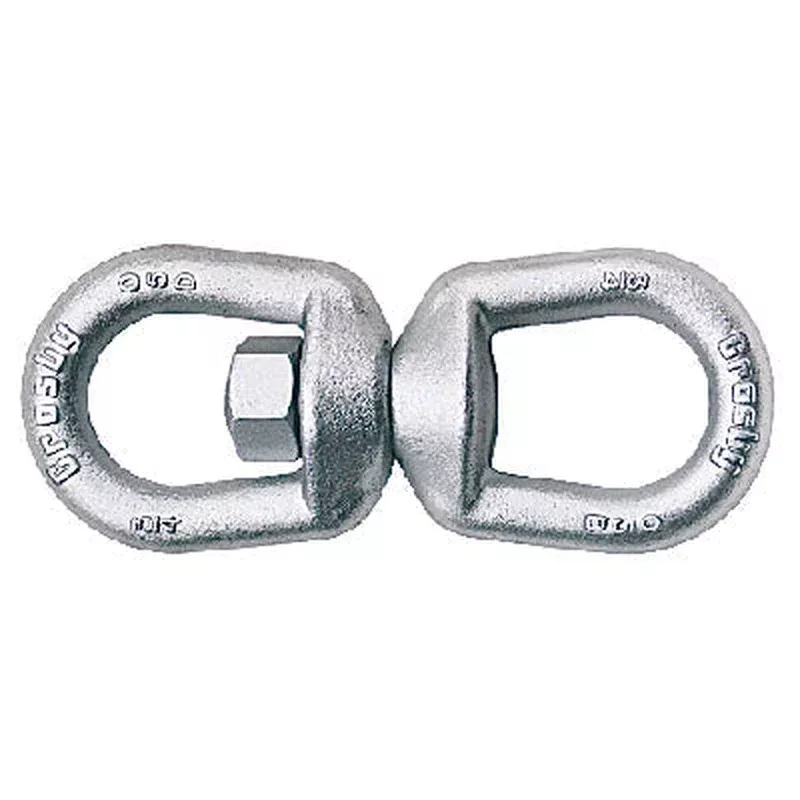

Crosby 5/8″ Regular Swivel – G-402 Eye to Eye
The Crosby G-402 5/8″ Regular Swivel is designed to align slings, wire rope, or chain legs with fixed connection points while preventing unwanted twisting or binding. This eye-to-eye swivel is commonly used to maintain straight-line tension in lifting, hoisting, or anchoring applications where side loads could compromise safety or performance.
Built from quenched and tempered steel and finished with hot-dip galvanizing, the G-402 is tough, corrosion-resistant, and ready for jobsite conditions. It supports a 5,200 lb working load limit with a 26,000 lb break strength and meets or exceeds ASTM A957 and ASME B30.26 standards. Not rated for rotation under load-use for positioning and in-line stability only.
Eye-to-Eye Swivel for Straight Load Path Rigging
Perfect for fixed anchor points such as hoist rings or eyebolts in crane setups, rigging systems, and heavy-duty equipment mounting.
Key Features
- Working Load Limit: 5,200 lbs (5:1 safety factor)
- Break Strength: 26,000 lbs
- Connection Style: Eye-to-eye swivel for fixed inline setups
- Finish: Hot dip galvanized for field-proven corrosion protection
- Material: Quenched and tempered steel
- Compliance: Meets ASTM A957 & ASME B30.26 standards
- Note: Not intended to rotate while under load
