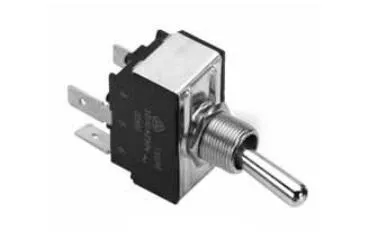

MCGILL® Full-size, single pole toggle switch features on/off circuitry and DPST configuration for convenient operation. Ruggedly constructed with metallic toggle and threaded bushing to ensure extended service life. Available with screw, solder and 1/4 inch quick connect terminals. For use in low voltage Vdc applications.
Specifications
| Brand Name | Emerson | Sub Brand | McGill |
| Item Name | Toggle Switch | Type | 2-Position |
| Voltage Rating | 125 – 277 VAC | Amperage Rating | 15 A |
| Number of Poles | 2 | Actuator | Toggle |
| Contact Configuration | DPST | Series/Model | 0121 |
| HP Rating | 3/4 hp | Action | Maintained/On-Off |
| Terminal Connection | Screw | Dimensions | 0.81 in D x 2.219 in H |
| Standards | UL Listed, CSA Certified | Application | For 15 A, 12 VDC Applications |
| UPC | 036283217019 |
