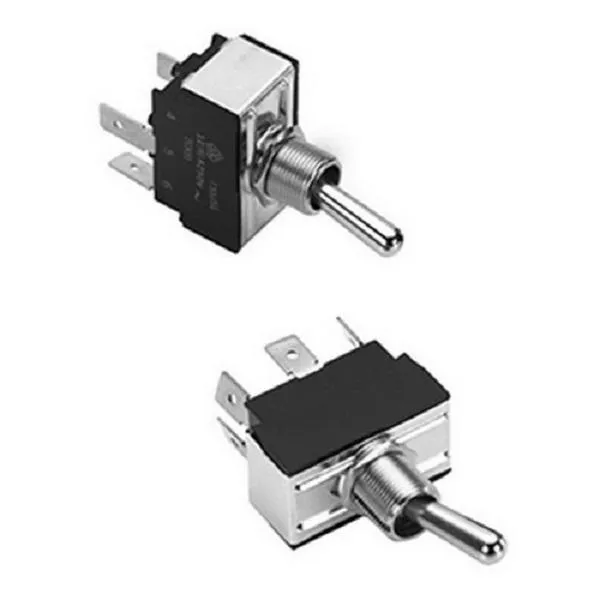

DPDT 15AMP SCREW TERM TOGGLE
Specifications
| Brand Name | Emerson | Sub Brand | McGill |
| Item Name | Toggle Switch | Type | Multipole |
| Voltage Rating | 125 VAC | Amperage Rating | 15 A |
| Number of Poles | 2 | Actuator | Toggle |
| Contact Configuration | DPDT | HP Rating | 3/4 hp at 125 VAC |
| Action | On/Off/On | Terminal Connection | Screw |
| Material | Phenolic Base, Nickel Plated Brass Bushing, Bat Handle | Dimensions | 1.31 in L x 3/4 in W x 2.36 in H |
| Mounting | Threaded | Standards | UL E335442, 1054, Guide WORY2, CSA C22.2 No. 55, RoHS Compliant |
| Application | For Use In Marine, Food Service, Generator, Industrial Control and Office Automation Markets | UPC | 036283000888 |
