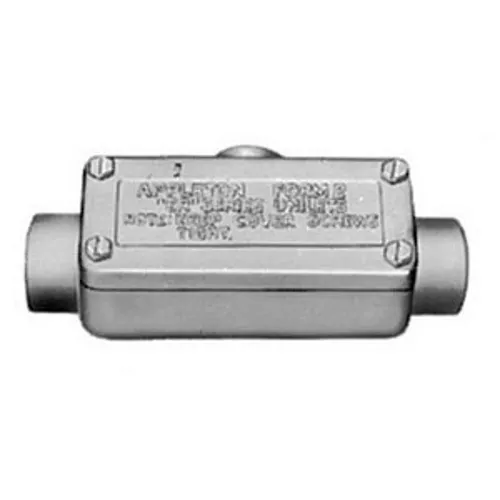

Appleton ER Conduit Outlet Boxes for use with Rigid Steel, Rigid Aluminum and IMC Conduit where Explosionproof, Dust-Ignitionproof are required. Corrosion-resistantideal indoor or outdoor. Connect conduit lengths and change direction of conduit. Malleable iron bodies have high tensile strength and ductility. Provides great resistance to corrosion, impact, and shock. Furnished with cast covers. Compact, rectangular conduit outlet boxes are ideal in classified locations where space is limited. Six different hub arrangements.
Specifications
| Brand Name | Appleton | Sub Brand | Unilet |
| Item Name | Type T Conduit Body | Type | ER Type T Conduit Outlet Box With Cover |
| Hub Size | 1/2 in | Connection | Tapered Female Threaded |
| Material | Malleable Iron | Finish | Triple Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat) |
| Dimensions | 5 in L x 1.81 in H | For Use With | Rigid Metal Conduit |
| Standards | UL File Number E30513, R1044, 009795, Class I, Division 1 and 2, Group C and D Class II, Division 1 and 2, Groups E, F, G Class III | Application | For Use With Rigid Metal Conduit |
| UPC | 781381302807 |
