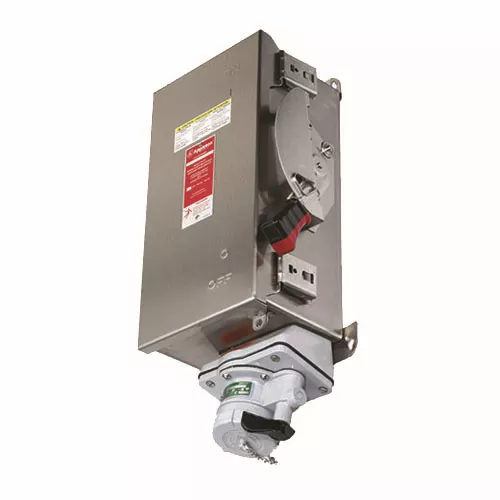

Interlocked Receptacle and Disconnect Switch, Type Interlocked, Constructional Feature Corrosion Resistant, Raintight, Watertight, Voltage Rating 600 VAC at 50/60 Hz, 250 VDC, Current Rating 60 Ampere, Number of Poles 4, Number of Wires 3, Door Type Spring Door, Removable Hinged, Padlockable Cover, Fuse Provision Fusible, Class J, Hub Type 1-1/2 Inch, Grounding Style 2, Shell, Extra Pole, Material Epoxy Powder Coated Copper-Free Aluminum (Receptacle), Stainless Steel (Enclosure), Enclosure NEMA 3/3R/4/4X/12, Wire Size 14 to 2 AWG, Power Rating 15 Hp at 600 VAC (Standard), 50 Hp at 600 VAC (Maximum), Excludes Viewing Window, Approval UL 98/50E/1682/1686, CSA C22.2, Application Welder, Generator, Compressor, Infrared Oven, Batch Feeder, Conveyor, Truck Terminal, Marine Dock, Industrial Plant, Excludes Viewing Window, Approval UL 98/50E/1682/1686, CSA C22.2, Application Welder, Generator, Compressor, Infrared Oven, Batch Feeder, Conveyor, Truck Terminal, Marine Dock, Industrial Plant
Specifications
| Brand Name | Appleton | Item Name | Interlock Receptacle Assembly with Viewing Window |
| Type | Fused | Voltage Rating | 600 VAC, 250 VDC |
| Amperage Rating | 60 A | Number of Poles | 4 |
| Number of Wires | 3 | NEMA Rating | NEMA 3, 3R, 4, 4X, 12, 13 |
| Conductor Size | 6-2 AWG | Material | Copperfree Aluminum Receptacle, Stainless Steel Enclosure |
| Finish | Epoxy Powder Coated | Series/Model | WSRD |
| Frequency Rating | 50/60 Hz | Grounding | Shell |
| For Use With | Powertite ACP and CPH Plugs | Includes | Enclosed Disconnect Switch |
| Standards | UL 98, 1682, 1686, 50E, UL File Number E160652, E145917, CSA C22.2 No. 182.1, C22.2 No. 4, CSA File Number 025875 | Application | For Welder, Generator, Compressor, Infrared Oven, Batch Feeder, Conveyor, Truck Terminal, Marine Dock, Industrial Plant |
| UPC | 781381090490 |
