Welding Material, CADWELD®, F20 type, Flint Ignitor required for operation.
Mixture consists mainly of copper oxide and aluminum
Primarily used in grounding and bonding applications
Welding material is in the top of the tube and starting material is in the bottom of the tube

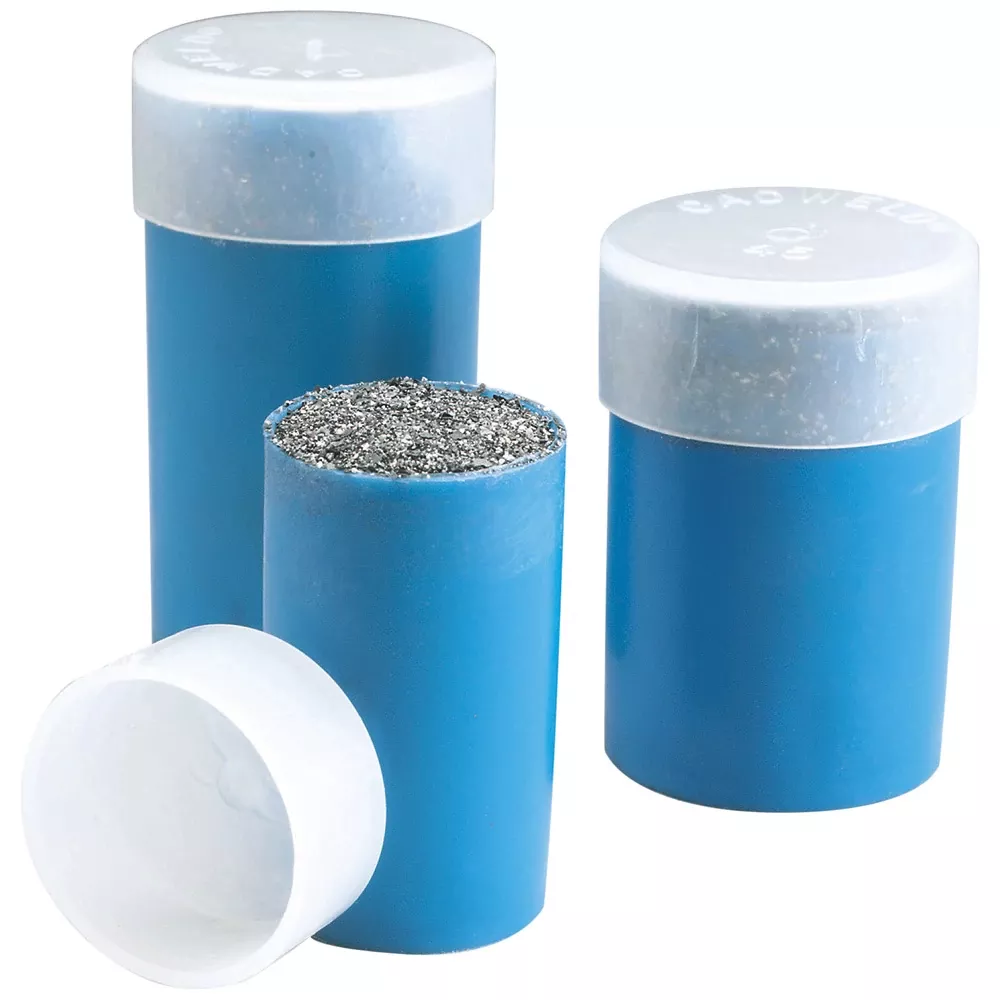

Packaged by size in plastic tubes with clear caps
Tubes packaged in plastic boxes along with metal disks
Each welded connection uses a single disk
Non-explosive
Not subject to spontaneous ignition
See specific nVent ERICO Cadweld connection details to determine welding material requirements
Specifications
Brand Name
nVent ERICO
Sub Brand
Cadweld®
Item Name
Welding Material
Type
F20, Non-Explosive, Traditional
Size
115 g
Material
Copper Oxide/Aluminum
Container Type
Plastic Tube
Form
Granular
Color
Gray Black
Odor/Scent
Odorless
Composition
25 – 85% Cuprous Oxide, 1 – 30% Cupric Oxide, 1 – 30% Copper, 1 – 20% Aluminum Powder
Standards
cULus Listed
Application
Use in Grounding and Bonding Applications
UPC
782856001539
