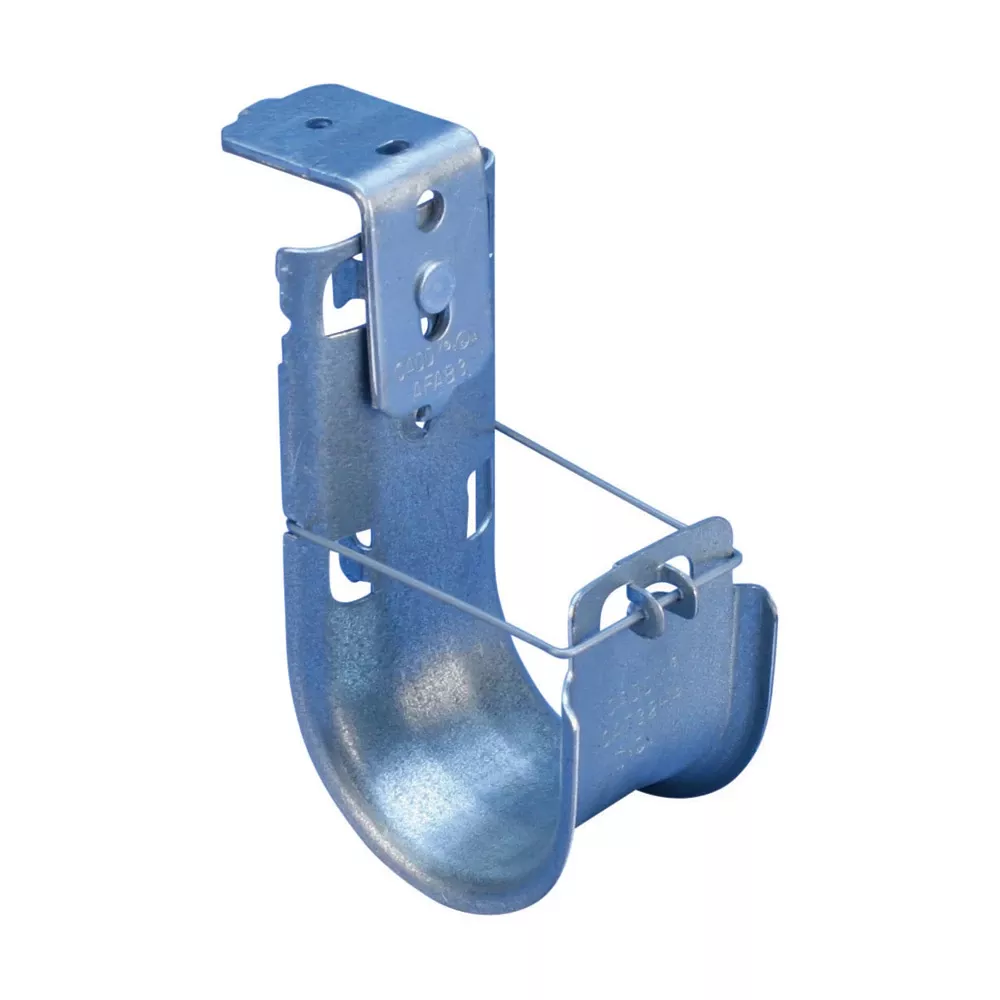

CADDY CAT HP J-Hook with Pin Driven Angle Bracket, 1 5/16″ dia, 3/8″ Hole.KEY FEATURES AND BENEFITS:•Longer leg angle bracket for tool clearance•Designed to fit a variety of pin drivers•Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic•Provides superior fill capacity and load rating over most other non-continuous cable support alternatives•Rounded edges on J-Hooks provide proper bend radius support for high performance data cables•Cost effective alternative to expensive cable tray•Complies with EN 50174-2•Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
Specifications
| Brand Name | nVent Caddy | Sub Brand | CADDY |
| Item Name | Cat HP J-Hook with Angle Bracket | Type | CADDY CAT HP J-Hook with Pin Driven Angle Bracket |
| Size | 1-5/16 in dia, 3/8 in Hole | Load Capacity | 60 lb |
| Material | Steel | Color/Finish | Pre-Galvanized |
| Packaging Quantity | 50/Pack | Standards | cULus Listed, EN 50174-2, IEC 14763-2, ANSI TIA 568 and TIA 569 |
| Application | For High-Performance Data Cable Including Cat5e, Cat6, Cat6A, Cat7, Fibre Optic Cables | UPC | 782856849575 |
