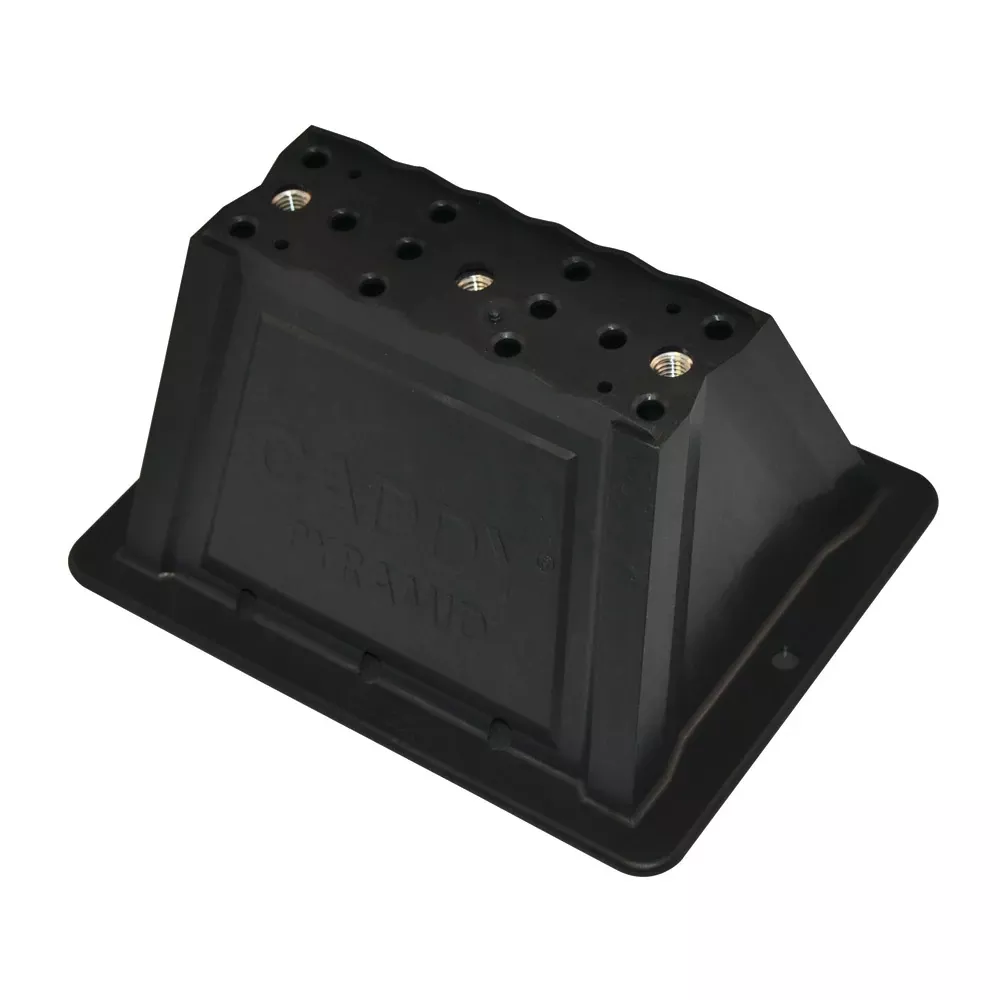

FEATURES:- Captive stainless steel nuts allow for custom attachment methods to the support base including easy attachment of stainless steel strut, threaded rod or other project-specific hardware- Foam bottom offers low abrasion interface for better roof membrane protectionCompatible with roof surfaces including single ply, bituminous, metal and spray foam- Provides superior load distribution, even with varying rooftop surfaces- Multiple sizes and load ratings offer the ability to tailor the solution to the application- Includes square holes for creating an H-Frame with a 12″ (305 mm) cross support (PBU16 only)- Base is manufactured from UV-stabilized thermoplastic material- Supports green building requirements; thermoplastic bases are made from recycled material and can contribute to earning LEED credits
Specifications
| Brand Name | Caddy | Sub Brand | CADDY |
| Item Name | Universal Support | Type | Pyramid |
| Trade Size | 3/8 in UNC | Load Capacity | 300 lb |
| Material | Polyethylene | Dimensions | 5-1/2 in L x 4 in W |
| For Use With | Roof Surfaces | Includes | H-Frame with a 12 in Cross Support |
| Application | Pumps, Fans, Heaters, HVAC, Lighting, Machinery, Commercial, Industrial, Agricultural | UPC | 782856846444 |
