FallTech 14-1/2″ Trailing Beam Clamp Anchor – Single Adjustment | 7531

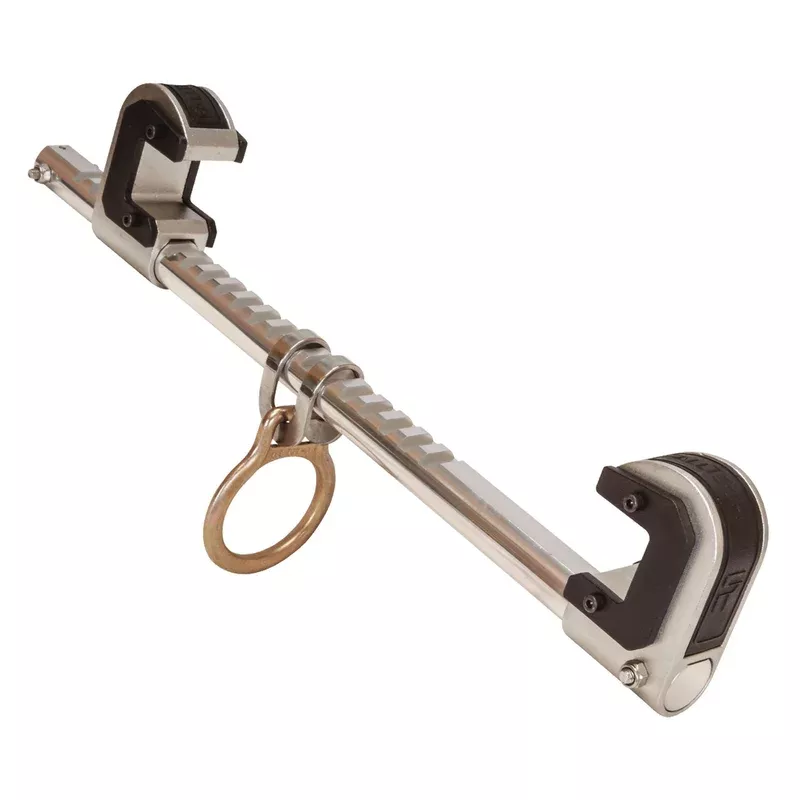

The FallTech 7531 Trailing Beam Clamp Anchor delivers jobsite mobility and trusted fall protection for steel beam applications. Designed for horizontal I-beams from 3″ to 14-1/2″ wide and up to 1-1/4″ thick, this temporary anchor point offers smooth D-ring trailing movement for workers needing freedom of motion along a beam during work at height.
Beam Clamp Anchor with Sliding D-Ring and Single-Jaw Adjustment
This anchor includes a high-strength aluminum crossbar and plated steel jaws equipped with nylon slider pads to reduce beam wear. The single-jaw adjustment system features a concealed locking latch for safety, while the D-ring moves in tandem with the adjustment jaw for versatile tie-off alignment. Rated to a 5,000 lb static strength and meeting ANSI Z359.18-2017 and OSHA 1926.502/1910.66 requirements, it’s built for serious jobsite demands.
Key Features
- Beam Fit: For I-beams 3″ to 14.5″ wide, up to 1.25″ thick
- Anchor Type: Trailing beam clamp with sliding D-ring
- Adjustment: Single-jaw adjustment with locking latch
- Material: Aluminum crossbar, plated alloy steel D-ring and clamp jaws
- Static Strength: 5,000 lb minimum
- User Capacity: 310 lbs ANSI / 425 lbs OSHA
- Standards: ANSI Z359.18-2017, OSHA 1926.502 & 1910.66 compliant
- Weight: 4.5 lbs
- Application: Horizontal I-beam fall protection for mobile tie-off
- Non-Returnable: Due to safety compliance, this item is not returnable
