Description:
- Flat material grinding module
- GIL

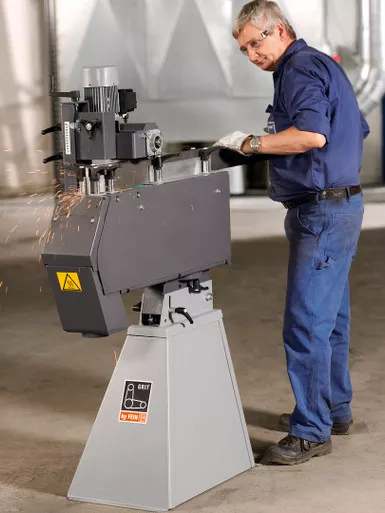

- Flat grinding module for perfect longitudinal grinding of square tube, sections and flat materials
Benefits:
- High operating speed using automatic feed
- Best surface results through finishing
- Flat material can also be ground âuprightâ
- Stable belt dimensions 6 x 79 in [150 x 2000 mm]
- Belt grinder can be used for contact grinding despite the mounted module
- For angular work piece
- Optional combination with GI 150 (2H) belt grinder
- Space saving operation possible using optional swivel plate
Technical Data:
- Power consumption: 0.18 kW
- Current/Voltage: 3 x 575V 60Hz
- Belt dimension: 6 [150]x 78-3/4 [2,000]in[mm]
- Max. dimension of profile/flat material: 4 [100]x 4 [100]in[mm]
- Weight: 141.1 [64] lbs[kg]
