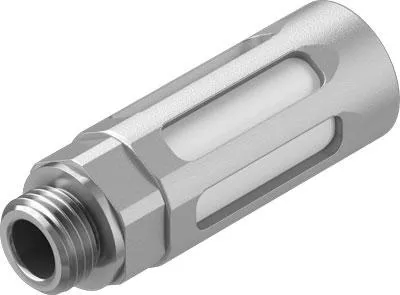

silencer U-1/4-B-NPT For reducing noise and avoiding contamination at the exhaust ports of pneumatic components. Assembly position=Any, Operating pressure complete temperature range=0 – 10 bar, Flow rate to atmosphere=3000 l/min, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible
Specifications
| Brand Name | Festo | Item Name | Pneumatic Silencer |
| Connection Size | 1/4 in | Connection Type | NPT |
| Material | Aluminum | Specifications | 0 – 10 bar Operating Pressure, 3000 l/min Flow Rate, 78 dBA Sound Pressure Level, -10 to 70 °C Ambient Temperature |
| Standards | RoHS Compliant |
