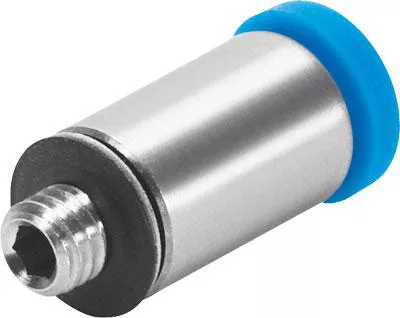

push-in fitting QSM-M3-4-I-R male thread with internal hexagon socket. Size=Mini, Nominal size=1,5 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=10
Specifications
| Brand Name | Festo | Item Name | Push-In Fitting with Internal Hexagon |
| Type | Mini, Straight | Dimensions | 1.5 mm dia |
| Material | Steel | Size | M3 x 4 mm |
| Connection | MNPT x Tube | Pressure Rating | -13.775 to 87 lb/in² |
| Temperature Rating | -10 to 80 °C | Finish | Blue/Nickel-Plated |
| Standards | ISO 8573-1:2010, RoHS Compliant |
