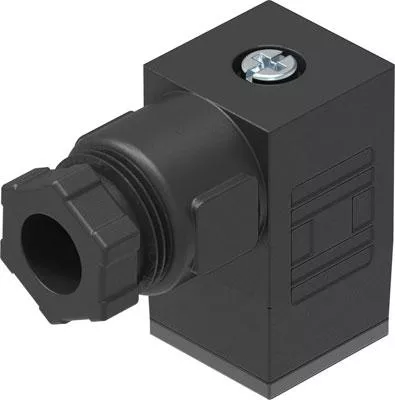

plug socket MSSD-EB For solenoid coils and valves, port pattern per DIN EN 175 301, type C. Mounting type=On solenoid valve with M2.5 central screw, Assembly position=Any, Product weight=11 g, Electrical connection=(* 3-pin, * Plug socket, * Plug socket angled, * Plug pattern type C to EN 175301-803, * Per DIN EN 175301-803, * According to DIN EN 61984, * Rectangular design, MSEB, * Rectangular design, MSN2), Nominal operating voltage DC=300 V
Specifications
| Brand Name | Festo | Item Name | Plug Socket |
| Type | 3-Pin, Angled, Type C | Voltage Rating | 0 – 250 VAC, 0 – 300 VDC |
| Amperage Rating | 6 A | Material | Polymer |
| Series/Model | MSSD | Color/Finish | Black |
| Dimensions | 6 – 8 mm dia x 30 mm L Cable | Mounting | Screw Terminal |
| Standards | IP65, IEC 60529 |
