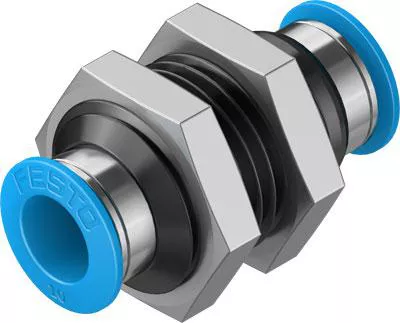

push-in bulkhead connector QSS-10 Size=Standard, Nominal size=9 mm, Assembly position=Any, Container size=10, Design structure=Push/pull principle
Specifications
| Brand Name | Festo | Item Name | Push-In Connector with External Hexagon |
| Type | Bulkhead, Standard | Trade Size | 10 mm |
| Length | 42.4 mm | Connection | Tube x Tube |
| Diameter | 9 mm | Material | Aluminum |
| Color/Finish | Anodized/Blue | Temperature Rating | -10 to 80 °C |
| Pressure Rating | -13.7 to 87 lb/in² | Packaging Quantity | 10/Pack |
| Standards | ISO 8573-1:2010, RoHS Compliant |
