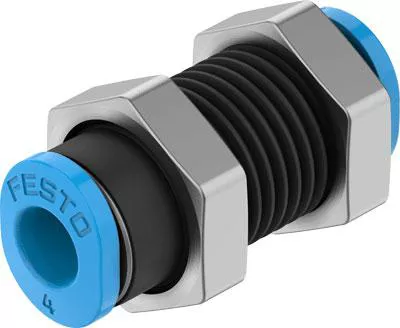

push-in bulkhead connector QSMS-4 Size=Mini, Nominal size=2,2 mm, Assembly position=Any, Container size=10, Design structure=Push/pull principle
Specifications
| Brand Name | Festo | Item Name | Push-In Connector |
| Type | Bulkhead, Mini, Straight | Trade Size | 4 mm |
| Length | 24 mm | Connection | Tube x Tube |
| Diameter | 2.2 mm | Material | Aluminum |
| Color/Finish | Blue/Anodized | Series/Model | QSMS |
| Temperature Rating | -10 to 80 °C | Pressure Rating | -13.7 to 87 lb/in² |
| Packaging Quantity | 10/Pack | Standards | ISO 8573-1:2010, RoHS Complaint, VDMA24364-B1/B2-L |
