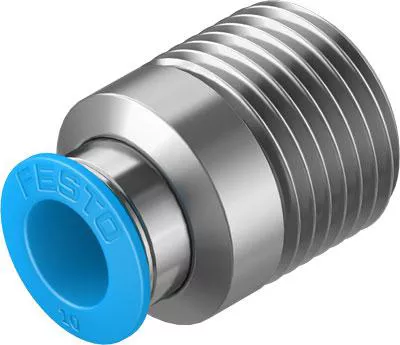

push-in fitting QS-1/2-10-I male thread with internal hexagon socket. Size=Standard, Nominal size=6,3 mm, Type of seal on screw-in stud=coating, Assembly position=Any, Container size=1
Specifications
| Brand Name | Festo | Item Name | Push-In Fitting with Internal Hexagon |
| Type | Standard, Straight | Dimensions | 6.3 mm dia x 30.3 mm L |
| Material | Brass | Size | R1/2 x 10 mm |
| Connection | MNPT x Tube | Pressure Rating | -13.775 to 87 lb/in² |
| Temperature Rating | -10 to 80 °C | Finish | Blue/Nickel-Plated |
| Standards | ISO 8573-1:2010, RoHS Compliant |
