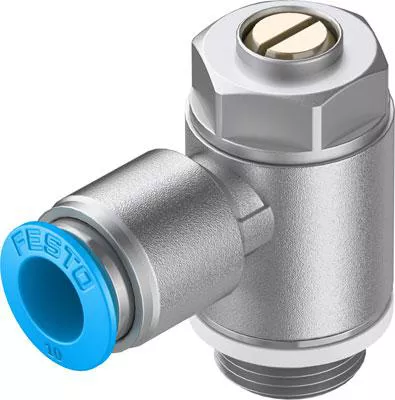

one-way flow control valve GRLA-3/8-QS-10-D Valve function=One-way flow control function for exhaust air, Pneumatic connection, port1=QS-10, Pneumatic connection, port2=G3/8, Adjusting element=Slotted head screw, Mounting type=Threaded
Specifications
| Brand Name | Festo | Item Name | Compressed Air Flow Control Valve |
| Type | 1-Way | Connection Type | MNPT x Push-In |
| Pressure Rating | 0.2 – 10 bar | Body Material | Metal |
| Series/Model | GRLA | Nominal Size | QS-10 x G3/8 |
| Flow Rate | 900 l/min | Trim Material | Brass |
| Softgoods Material | NBR | Dimensions | 46.7 mm L x 42.15 mm H |
| Temperature Rating | -10 to 60 °C | Standards | RoHS Compliant |
