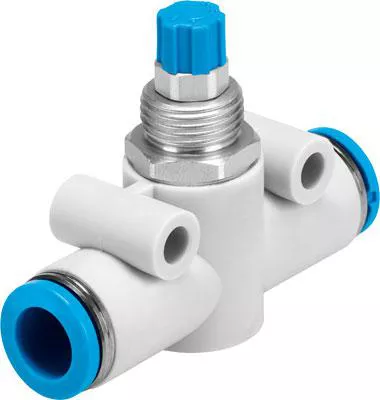

one-way flow control valve GR-QS-8 With flow adjustable in one direction. Valve function=One-way flow control function, Pneumatic connection, port1=QS-8, Pneumatic connection, port2=QS-8, Adjusting element=Knurled screw, Mounting type=(* Front panel installation, * with through hole, * with accessories, * Optional)
Specifications
| Brand Name | Festo | Item Name | Compressed Air Flow Control Valve with Flow Adjustable |
| Pressure Rating | 0.2 – 10 bar | Body Material | Polyamide |
| Series/Model | GR | Nominal Size | QS-8 |
| Flow Rate | 265 l/min | Softgoods Material | NBR |
| Dimensions | 53.4 mm L x 46.1 mm H | Temperature Rating | -10 to 60 °C |
| Standards | RoHS Compliant |
