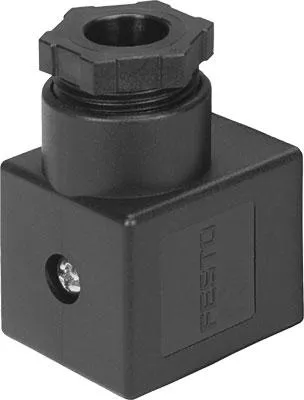

plug socket MSSD-C For solenoid coils and valves, port pattern per DIN EN 175 301, type A. Authorisation=Germanischer Lloyd, Mounting type=On solenoid valve with M3 central screw, Assembly position=Any, Product weight=22 g, Electrical connection=(* 3-pin, * Plug socket angled, * Plug pattern type A to EN 175301-803, * Per DIN EN 175301-803, * Rectangular design, MSC, * Rectangular design, MSN1)
Specifications
| Brand Name | Festo | Item Name | Plug Socket |
| Type | 3-Pin, Angled | Voltage Rating | 250 VAC/300 VDC |
| Amperage Rating | 16 A | Material | Polymer |
| Color/Finish | Black | Mounting | Screw |
| Standards | RoHS Compliant, VDMA24364-B2-L |
