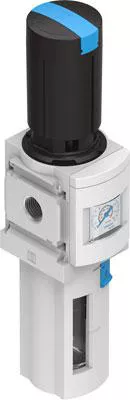

filter regulator MS6-LFR-1/2-D6-CRM-AS 7 bar maximum output pressure, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Size=6, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Vertical +/- 5°, Grade of filtration=5 µm
Specifications
| Brand Name | Festo | Item Name | Filter Regulator with Pressure Gauge |
| Type | Size 6 | Port Size | G1/2 |
| Air Flow | 5600 l/min | Air Pressure | 0.3 – 7 bar |
| Maximum Pressure | 20 bar | Temperature Rating | -10 to 60 °C |
| Filter Rating | 5 µm | Material | Die-Cast Aluminum |
| Series/Model | MS | Standards | ISO 8573-1:2010, RoHS Compliant, VDMA24364-B1/B2-L |
