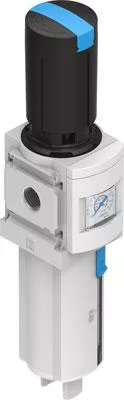

filter regulator MS6-LFR-1/2-D7-EUV-AS Maximum output pressure 12 bar, 40 µm filter, with pressure gauge, lockable regulator head, metal bowl guard, fully automatic condensate drain, flow direction from left to right. Size=6, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Vertical +/- 5°, Grade of filtration=40 µm
Specifications
| Brand Name | Festo | Item Name | Filter Regulator with Pressure Gauge |
| Type | Size 6 | Port Size | G1/2 |
| Air Flow | 4500 l/min | Air Pressure | 0.5 – 12 bar |
| Maximum Pressure | 12 bar | Temperature Rating | -10 to 60 °C |
| Filter Rating | 40 µm | Material | Die-Cast Aluminum |
| Series/Model | MS | Standards | ISO 8573-1:2010, RoHS Compliant, VDMA24364-B1/B2-L |
