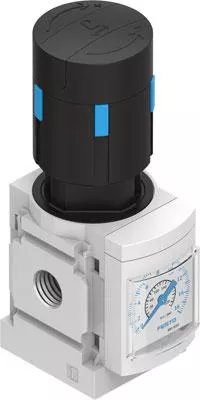

pressure regulator MS4-LR-1/4-D7-AS 12 bar maximum output pressure, with pressure gauge, lockable regulator head, direction of flow: from left to right. Size=4, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Any, Design structure=directly-controlled diaphragm regulator
Specifications
| Brand Name | Festo | Item Name | Pressure Regulator with Pressure Gauge |
| Type | Size 4 | Port Size | G1/4 |
| Air Flow | 1700 l/min | Air Pressure | 0.5 – 12 bar |
| Maximum Pressure | 14 bar | Temperature Rating | -10 to 60 °C |
| Material | Die-Cast Aluminum | Series/Model | MS |
| Dimensions | 40 mm L x 57 mm W x 117.5 mm H | Standards | RoHS Compliant |
