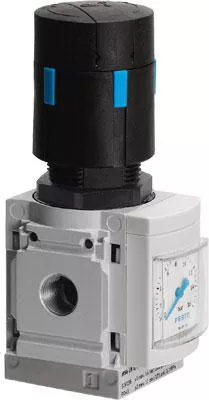

pressure regulator MS4-LRB-1/4-D6-AS For manifold assembly, 7 bar maximum output pressure, with pressure gauge, lockable regulator head, P2 connection at rear. Size=4, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Any, Design structure=(* directly-controlled diaphragm regulator, * with looped-through compressed air supply)
Specifications
| Brand Name | Festo | Item Name | Pressure Regulator with Pressure Gauge |
| Type | Size 4 | Port Size | G1/4 |
| Air Flow | 1700 l/min | Air Pressure | 0.3 – 7 bar |
| Maximum Pressure | 14 bar | Temperature Rating | -10 to 60 °C |
| Material | Die-Cast Aluminum | Series/Model | MS |
| Standards | ISO 8573-1:2010, RoHS Compliant, VDMA24364-B1/B2-L |
