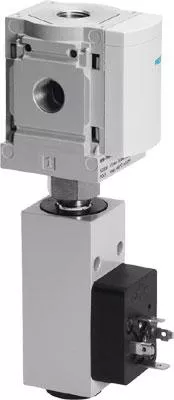

branching module MS4-FRM-1/4-Y Includes pressure switch without indicator, direction of flow: from left to right. Assembly position=Any, Design structure=Branching module, Operating pressure=0 – 12 bar, Standard nominal flow rate in main flow direction 1-2=4600 l/min, Standard nominal flow rate outlet at top=1500 l/min
Specifications
| Brand Name | Festo | Item Name | Branching Module |
| Connection Size | G1/4 in | Connection Type | NPT |
| Material | Die-Cast Aluminum | Series/Model | MS |
| Dimensions | 40 mm L x 63mm W x 92.3mm H | Specifications | -10 to 60 °C Temperature |
| Standards | RoHS Compliant |
