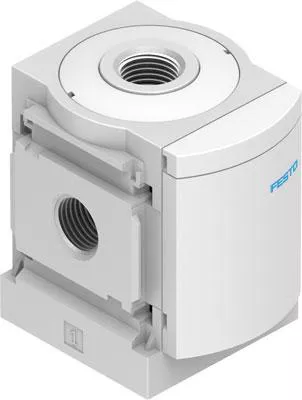

branching module MS6-FRM-1/2 Direction of flow: from left to right. Assembly position=Any, Design structure=Branching module, Operating pressure=0 – 20 bar, Standard nominal flow rate in main flow direction 1-2=14700 l/min, Standard nominal flow rate outlet at top=4400 l/min
Specifications
| Brand Name | Festo | Item Name | Branching Module |
| Size | G1/2 | Material | Die-Cast Aluminum |
| Temperature Rating | -10 to 60 °C | Standards | RoHS Compliant |
| Application | For Compressed air Porting Blocks |
