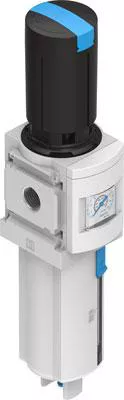

filter regulator MS6N-LFR-1/2-D7-EUM-AS 12 bar maximum output pressure, 40 µm filter, with pressure gauge, lockable regulator head, metal bowl, manual condensate drain, direction of flow: from left to right. Size=6, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Vertical +/- 5°, Grade of filtration=40 µm
Specifications
| Brand Name | Festo | Item Name | Filter Regulator |
| Filter Rating | 40 µm | Flow Rate | 4500 l/min |
| Pressure Rating | 0.8 – 20 bar | Material | Polyethylene |
| Series/Model | MS | Inlet Size | 1/2 in NPT |
| Outlet Size | 1/2 in NPT | Temperature Rating | -10 to 60 °C |
| Standards | ISO 8573-1:2010, RoHS Compliant |
