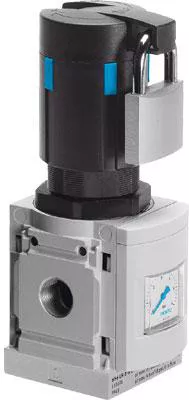

pressure regulator MS6N-LR-1/2-D6-AS 7 bar maximum output pressure, with pressure gauge, lockable regulator head, direction of flow: from left to right. Size=6, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Any, Design structure=Pressure regulator with gauge
Specifications
| Brand Name | Festo | Item Name | Pressure Regulator with Pressure Gauge |
| Type | Directly Controlled, Size 6 | Port Size | 1/2 in NPT |
| Air Flow | 6500 l/min | Air Pressure | 0.3 – 7 bar |
| Maximum Pressure | 20 bar | Temperature Rating | -10 to 60 °C |
| Material | Die-Cast Aluminum | Series/Model | MS |
| Standards | ISO 8573-1:2010, RoHS Compliant, VDMA24364-B1/B2-L |
