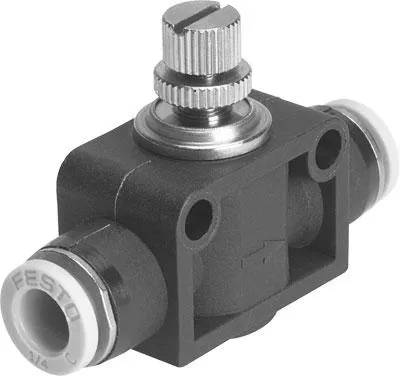

one-way flow control valve GR-QB-3/8-U Valve function=One-way flow control function, Pneumatic connection, port1=QB-3/8, Pneumatic connection, port2=QB-3/8, Type of actuation=manual, Adjusting element=Slotted head screw
Specifications
| Brand Name | Festo | Item Name | Compressed Air Flow Control Valve |
| Type | 1-Way | Pressure Rating | -0.951 to 7.998 bar |
| Body Material | PBT | Series/Model | GR |
| Nominal Size | QB-3/8 | Actuator | Manual |
| Flow Rate | 1449.15 l/min | Softgoods Material | NBR |
| Dimensions | 61.4 mm L x 17.5 mm W x 48.6 mm H | Temperature Rating | 0 – 60 °C |
| Standards | RoHS Compliant, VDMA24364 Zone III |
