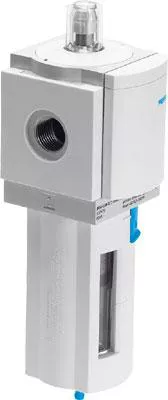

fine filter MS6-LFM-1/2-BRM-DA 1 µm filter, plastic bowl with plastic bowl guard, manual condensate drain, with differential pressure indicator, direction of flow from left to right. Series=MS, Size=6, Design structure=Fibre filter, Grade of filtration=1 µm, Condensate drain=manual rotary
Specifications
| Brand Name | Festo | Item Name | Fine Filter |
| Filter Rating | 1 µm | Flow Rate | 140 – 950 l/min |
| Pressure Rating | 0 – 20 bar | Material | Borosilicate Fiber |
| Series/Model | MS | Inlet Size | G1/2 |
| Outlet Size | G1/2 | Temperature Rating | -10 to 60 °C |
| Standards | ISO 8573-1:2010, RoHS Compliant |
